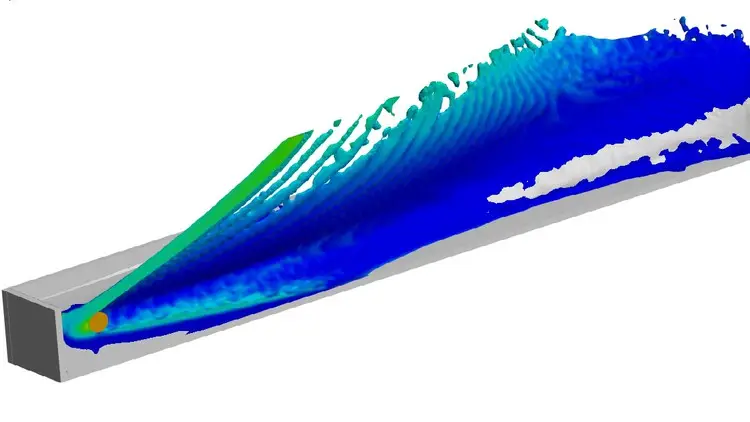

Simulation of a cannonball fired from a ship into water
What you'll learn
Create a geometry for Solid-Fluid interaction in SpaceClaim
Prepare the geometry with Workbench
Create mesh, set up symmetry and body interactions
Define Euler (Virtual) Domain
Solver setup for Solid-Fluid interaction
Define boundaries and initial conditions
Post-processing: evaluate your simulation
Requirements
Software is recommended. You can download the Student Version from the ANSYS website (Google -> ANSYS Student)
Experience with FEM Simulations and Engineering knowledge recommended, but nut mandatory
Description
In this class I am going to show you a really simple Solid-Fluid interaction. This is a step by step tutorial and is recommended for everyone with desire to simulate fluids in Euler-Domain.
As a beginner compatible course, it contains only the necessary elements and steps, to be as straightforward as possible. The goal is to learn the essential structure and workflow of a Solid-Fluid interaction simulation and not to confuse the newcomers. In future, more advanced courses we are going to expand the limits and possibilities of our simulation and include the following, not yet applied skills like:
- set up parametrized workflow
- include material with failure model
- solve problems, where bodies are breaking/fracturing
- include explosions and pressure waves
This is the second part of the course-serie, a nice basis to start from.You do not require any experience with ANSYS, but explicit dynamics is an advanced field. If you have any questions, don't be shy to ask anything.
As project or self-practice you can make a modified version of our Solid-Fluid interaction with a little twist here and there. Modify the dimensions, velocity, angel of attack, densities or the mesh resolution as you like to see the influence at the end.
This is going to be a good practice to see, if you have a good understanding of a basic Solid-Fluid interaction.
Who this course is for:
Intended for beginners in the Explicit Dynamics simulation environment
