Microstrip Patch Antenna Design using Keysight PathWave ADS (9/2021)

Learn how to Design & Analyze Microstrip Patch Antennas using Different Feeds & Substrates using Keysigh ADS RAHAE209-L

What you'll learn

Microstrip Patch Antenna Design using Keysight ADS
Design and Analysis of Microstrip Patch Antenna using Rogers5880 with Keysight ADS
Characteristics of Microstrip Patch Antenna, Advantages
Different Feed Technique
Optimization and Result Analysis of MSA

Requirements

Prerequisite for students planning to get RAHAE209-L course which is a complete package of Microstrip Patch antenna design in ADS using different feeds and substrate courses RAHAE101 and RAHAE201 from Rahsoft Antenna Engineering Certificate or equivalent.
Antenna Fundamentals
Electromagnetics

Description

Description

In RAHAE 209-L we would be concentrating on Hand on Antenna Design using PathWave Advanced Design System (ADS). This course will cover Antenna design using different feed techniques. This course will help you to learn design steps of Microstrip Patch Antenna with the help of equations and design part in ADS. This course help to design different feeds to feed the patch antenna. The comparative analysis of different feeds and substrate with different thickness of dielectric material is included in this course. Easily understanding of antenna parameters like S-parameter, Realized gain, Efficiency, Directivity with the help of ADS software.

PLEASE NOTE PathWave Advanced Design System (ADS) software is not provided in this course however you can ask for a 1 month free trial through Keysight and also ask for extension (which most of our students have been able to extend up to additional 2 months)

You can also ask your school for the software if you are a student

Course content

Introduction

Chapter:1 Microstrip Patch Antenna

Microstrip patch antenna introduction

Characteristics of Microstrip Patch Antenna, Advantages

Applications of MSA

Different Feed Technique

Design steps of Microstrip Patch Antenna

Design of Microstrip Patch Antenna at 3.5 GHz

Microstrip Patch Antenna Design using FR4 Substrate at 3.5GHz

Result Analysis of Microstrip Patch Antenna

Optimization and Result Analysis of MSA

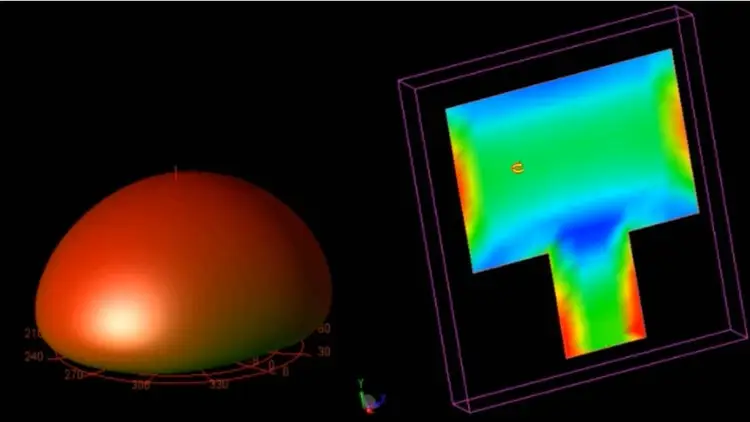

Gain, Directivity, Efficiency and Power radiated plot

Optimization of the Microstrip Patch Antenna

Optimization of feed length and width

Feed optimization continued

Feed optimization simulation results

Design of Microstrip Patch Antenna at 3.5 GHz with 3.2mm thick substrate

Design of Microstrip Patch Antenna with 3.2mm thick FR4 substrate

Result Analysis

Result Analysis Continued…

Microstrip Patch Antenna Optimization


Design of Microstrip Patch Antenna at 3.5 GHz with 4.8mm thick substrate

Design of Microstrip Patch Antenna with 4.8mm thick FR4 substrate

Simulations result analysis

Comparative analysis of microstrip patch antenna with different substrate thickness


Chapter:2 Design and Analysis of Microstrip Patch Antenna using Rogers5880



Design and Analysis of Microstrip Patch Antenna using Rogers5880

Design of microstrip patch antenna

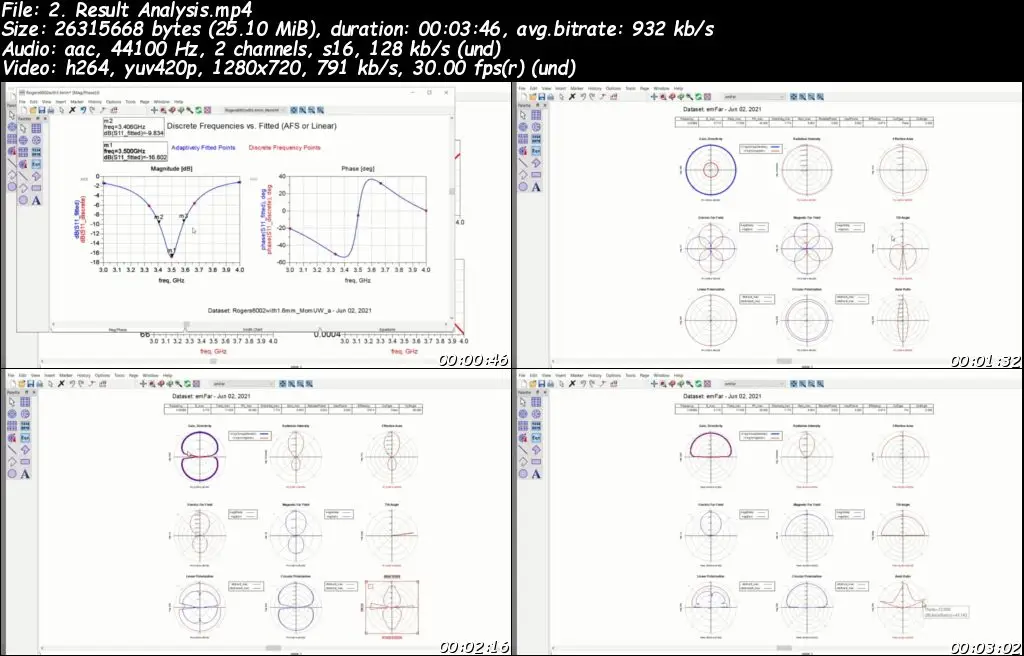

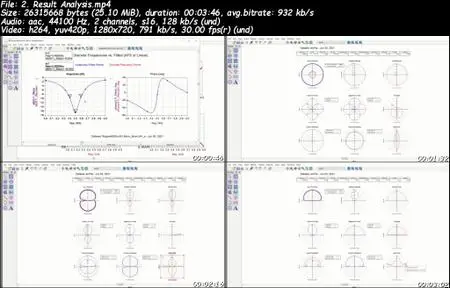

Result Analysis

How Rogeers5880 affects the performance of microstrip patch antenna

Effect of permittivity on gain of the MSA


Design of Microstrip Patch Antenna at 3.5 GHz with 3.2mm thick Rogers substrate

Design of Microstrip Patch Antenna at 3.5 GHz with 3.2mm thick Rogers substrate

Far field cut of the MSA antenna

Design of Microstrip Patch Antenna at 3.5 GHz with 4.8mm thick Rogers substrate

Design of Microstrip Patch Antenna at 3.5 GHz with 4.8mm thick Rogers substrate

Result Analysis

Comparative Analysis of the MSA with 1.6mm, 3.2mm, 4.8mm thickness of the substrate

Comparison of the antenna performance with different substrate thickness

Comparison of MSA using FR4 and Rogers5880 Substrate for different substrate thickness

Result Analysis of Rogers5880 and FR4 Substrate with different thickness

What is the frequency range for Rogers5880 and FR4 Substrate and which one is better

What is the frequency range for Rogers5880 and FR4 Substrate and which one is better


Who this course is for:

Antenna Engineer
Undergraduate students working projects in antenna field
Post graduate students taking antenna course
Research scholars working in the field of RF/Antenna
This course is set for professionals working in the area of RF/Antenna field.
