Most Complete Teaching Of Spanning Tree Protocol (Stp)

STP / RSTP / MSTP

What you'll learn
Spanning-Tree Protocol (STP) Introduction
Spanning-Tree Protocol (STP) Configuration
Spanning-Tree Protocol (STP) Verification
Rapid Spanning-Tree Protocol (RSTP) Introduction
Rapid Spanning-Tree Protocol (RSTP) Configuration
Rapid Spanning-Tree Protocol (RSTP) Verification
Multiple Spanning-Tree Protocol (MSTP) Introduction
Multiple Spanning-Tree Protocol (MSTP) Configuration
Multiple Spanning-Tree Protocol (MSTP) Verification
Spanning-Tree Protocol (STP) Protection Introduction
Spanning-Tree Protocol (STP) Protection Configuration
Spanning-Tree Protocol (STP) Protection Verification
Requirements
CCNA Switching
Description

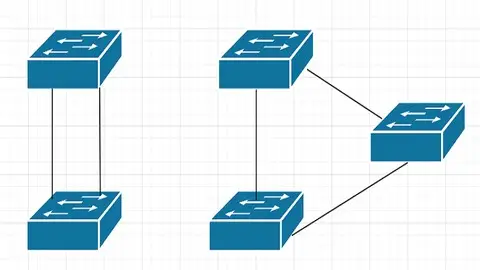

The Spanning Tree Protocol (STP) is a network protocol that builds a loop-free logical topology for Ethernet networks. The basic function of STP is to prevent bridge loops and the broadcast radiation that results from them. Spanning tree also allows a network design to include backup links providing fault tolerance if an active link fails.As the name suggests, STP creates a spanning tree that characterizes the relationship of nodes within a network of connected layer-2 bridges, and disables those links that are not part of the spanning tree, leaving a single active path between any two network nodes. STP is based on an algorithm that was invented by Radia Perlman while she was working for Digital Equipment Corporation.In 2001, the IEEE introduced Rapid Spanning Tree Protocol (RSTP) as 802.1w. RSTP provides significantly faster recovery in response to network changes or failures, introducing new convergence behaviors and bridge port roles to do this. RSTP was designed to be backwards-compatible with standard STP.STP was originally standardized as IEEE 802.1D but the functionality of spanning tree (802.1D), rapid spanning tree (802.1w), and multiple spanning tree (802.1s) has since been incorporated into IEEE 802.1Q-2014.The need for the Spanning Tree Protocol (STP) arose because switches in local area networks (LANs) are often interconnected using redundant links to improve resilience should one connection fail. However, this connection configuration creates a switching loop resulting in broadcast radiations and MAC table instability If redundant links are used to connect switches, then switching loops need to be avoided.To avoid the problems associated with redundant links in a switched LAN, STP is implemented on switches to monitor the network topology. Every link between switches, and in particular redundant links, are catalogued. The spanning-tree algorithm then blocks forwarding on redundant links by setting up one preferred link between switches in the LAN. This preferred link is used for all Ethernet frames unless it fails, in which case a non-preferred redundant link is enabled. When implemented in a network, STP designates one layer-2 switch as root bridge. All switches then select their best connection towards the root bridge for forwarding and block other redundant links. All switches constantly communicate with their neighbors in the LAN using bridge protocol data units (BPDUs).

Overview

Section 1: Introduction

Lecture 1 Spanning Tree Protocol - Advanced STP Tuning

Lecture 2 Rapid Spanning-Tree Protocol [RSTP]

Lecture 3 Multiple Spanning Tree Protocol [MST] - ArashDeljoo

Lecture 4 Spanning Tree Protocol Protection - ArashDeljoo

Network Engineers
