Electric Arc Simulation Ansys Fluent With Mhd Module

Simulation with the module MHD

What you'll learn

Arc simulation

Ansys MHD module

Electric arc modelation

Simulation

Requirements

knowledge in the management of ANSYS-FLUENT

C++ programming

fluid mechanics and heat transfer

know Maxwell's laws

MHD module

Transient simulation

Description

In this course you will learn the methodology for simulation of electric arcs through the software ANSYS-FLUENT. You will learn all the necessary steps for the activation of MHD module, geometry, mesh, simulation and interpret the results. In addition to knowing about the theory of electric arc and ways of applying it in other models that involve electromagnetic phenomena. You will find an example of simulation and the results.The MHD module is a really useful tool which allows to coupling the Navier Stokes equations with the Electromagnetic equations, and in this way simulate a fluid with magnetic properties. And this module not only allows to simulate electric arcs but also any can of ferromagnetic fluids.In this course you will find all the necessaries steps for the simulation and the codification for UDFs in C++, and in this way you can modify it. You can applied this methodology in 2D and 3D models, and in models with dynamic meshes as well.When you finish this course you will be able to do your own arc simulation, and I suggested to start with the model developed here, then you can move to more complex ones. If you have any doubts you can write an email.

Overview

Section 1: Introduction

Lecture 1 Introduction

Lecture 2 1. What is the electric arc?

Lecture 3 2. Electric arc physics

Lecture 4 3. Simulation model

Lecture 5 4. Module MHD and UDF´s

Lecture 6 5. Methodology for simulation in ANSYS-FLUENT

Lecture 7 5.1 Solution errors

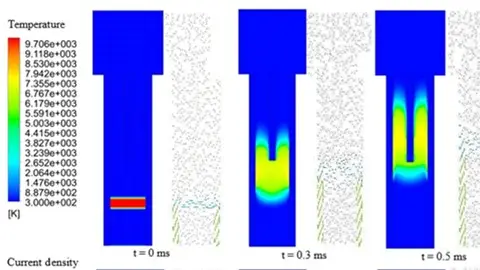

Lecture 8 6. Obtaining and interpreting results

Researchers focused on simulations in ANSYS, fluid mechanics, heat transfer,Researchers focused on electromagnetic phenomena
