Bms(Building Management System) Fundamentals: From A To Z

BMS course covering concepts of HVAC, Electrical, Controls, IT networking, communication protocols and much more.

What you'll learn

Understand the BMS architecture and different components of BMS

Understand the functionally of input and output field devices

Understand how to terminate BMS cables on different field device

Identity different types of IO and software points

To be able to read and understand important BMS documents (IO list, schematic diagrams, Riser diagram, DGP drawings)

Learn about the different DDC controllers and IO modules.

Understand the operation of different HVAC equipment(Chillers, AHUs, FCU, VAVs)

Demonstrate the difference between different types of chilled water system and understand their sequence of operation.

Understand different motor starter circuits used in MCC panel including VFDs.

Understand basics of IT networking including IP & MAC address, VLAN, Subnet.

To be able to operate the BMS from workstation and create trends in Niagara workstation.

Requirements

No prior experience is required. All you need is a laptop or mobile and open mind to learn.

Description

Welcome to the Building Management System (BMS) Fundamentals course, the ultimate guide to mastering the essentials of BMS. If you're an electrical or mechanical engineer or a technician who wants to learn more about BMS, this course is for you!With years of experience working in the building management industry, we have designed this course to equip you with the knowledge and skills you need to succeed in this dynamic field.Throughout this course, you'll gain a deep understanding of BMS fundamentals, including sensors, controllers, and actuators, as well as the basics of electrical, HVAC systems and IT Networking. Knowledge gained through this course will help you to boost your skills in BMS design, programming, installation and Testing & Commissioning.Whether you're a BMS engineer, consultant, facility manager, or technician, this course is the perfect resource to take your skills to the next level. Through this course you will gain practical skills that you can apply immediately on the job.In this course you will learn:What are different architectures used in BMS.Basics of Electrical and control systems.Functionally of different field devices including input (sensors & actuators) and output devices (actuators).How to make cable termination for different field devices.What are different types of DDC controllers and IO modules.How different HVAC systems(AHUs, FCUs, Chillers) work and how to control and monitor them from BMS.How to read and understand important BMS documents (IO list, schematic diagrams, Riser diagram, SOO etc.)Different motor start circuits used in MCC panels and how to control & monitor them BMS.What is an IT network, IP address, MAC address, VLAN and Subnet.Details about BACnet and Modbus protocol.How to perform point by point testing of BMS.How to use graphical user interface to control and monitor equipment connected to BMS.With 7 hours of video content, quizzes and downloadable resources this is the most comprehensive course about BMS on Udemy, which covers in details about fundamental of electricity, operation of HVAC systems, IT networking concepts, BMS protocols.Enroll today and start your journey into the world of BMS. Take the first step toward elevating your career and enhancing your skill set!Important Note:This course doesn't teach how to develop programs for DDC controllers however it will help you to deeply understand the sequence of operation of different HVAC equipment (different types of chiller plants, AHUs, FCUs, VAVs) which will enable to develop optimized control programs for your projects.

Overview

Section 1: Introduction to BMS

Lecture 1 Introduction to BMS

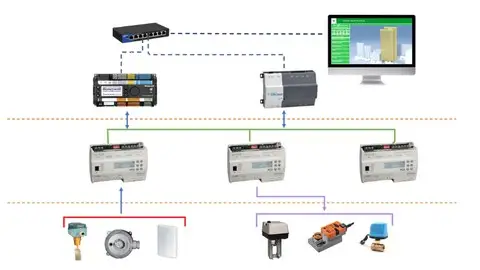

Lecture 2 BMS Architecture

Section 2: Electricity Fundamentals

Lecture 3 Basics of Electricity

Lecture 4 Transformer

Lecture 5 Fuse,MCB

Lecture 6 Relay

Lecture 7 Contactor

Section 3: Basics of Control Systems

Lecture 8 What is a Control System

Lecture 9 Open vs Closed Loop System

Lecture 10 Types of Control Systems

Lecture 11 What is a Control loop response

Lecture 12 Types of control loop responses

Lecture 13 Common Control terms

Section 4: Input Field Devices

Lecture 14 Input devices introduction and temperature sensors explanation

Lecture 15 Relative Humidity Sensors

Lecture 16 Pressure Transmitters

Lecture 17 Flow Meters

Lecture 18 Gas sensors

Lecture 19 Switches

Section 5: Controlled(Output) Field Devices

Lecture 20 Dampers & Damper actuators

Lecture 21 Valves introduction and selection guide

Lecture 22 Pressure independent control valve(PICV)

Section 6: Termination of Field Devices

Lecture 23 Outdoor Temperature & Humidity sensor

Lecture 24 Duct Temperature & Humidity transmitter

Lecture 25 Immersion Temperature sensor

Lecture 26 Space Temperature sensor

Lecture 27 Air Differential Pressure Transmitter(DPT)

Lecture 28 Water Differential Pressure Transmitter

Lecture 29 Air Differential Pressure Switch(DPS)

Lecture 30 Water Differential Pressure Switch(DPS)

Lecture 31 Water Flow Switch

Lecture 32 AHU Valve Actuator

Lecture 33 FCU Valve Actuator

Lecture 34 FCU Thermostat

Lecture 35 Damper Actuator

Section 7: BMS Points

Lecture 36 What are different types of points

Lecture 37 IO points inside a Workstation

Section 8: DDC Controller and IO Modules

Lecture 38 DDC controller introduction

Lecture 39 IO Modules Part-1

Lecture 40 IO Modules Part-2

Lecture 41 Practical Video of a DDC Panel

Section 9: HVAC

Lecture 42 Basics of HVAC

Lecture 43 Absolute Humidity and Relative Humidity

Lecture 44 Dry and Wet Bulb Temperature

Lecture 45 CAV (Constant Air Volume) System

Lecture 46 VAV (Variable Air Volume) System

Lecture 47 AHU introduction and sequence of operation

Lecture 48 FCU introduction and sequence of operation

Lecture 49 Constant Primary Chilled Water System

Lecture 50 Primary Secondary Chilled Water System

Lecture 51 Variable Primary Flow(VPF) Chilled Water system

Section 10: MCC Panel

Lecture 52 MCC Panel Introduction

Lecture 53 MCC Panel Practical Video

Lecture 54 VFD Introduction

Lecture 55 How to read MCC drawings

Section 11: BMS Documents

Lecture 56 IO List and Schematic Diagrams

Lecture 57 Riser Diagram

Lecture 58 DGP Drawings

Lecture 59 Sequence of Operation (SOO)

Section 12: IT Newtworking Basics

Lecture 60 What is a Network

Lecture 61 IP address, MAC address and Subnetting Explained

Lecture 62 Subnet and VLAN explained

Lecture 63 BMS Network Examples

Section 13: Communication Protocols(BACnet & Modbus)

Lecture 64 What is a protocol?

Lecture 65 Introduction to BACnet

Lecture 66 BACnet Objects Explained

Lecture 67 BACnet Services Explained

Lecture 68 BACnet IP and MSTP Explained

Lecture 69 Introduction to Modbus

Lecture 70 Modbus RTU

Lecture 71 Modbus Mapping Explained

Lecture 72 Modbus Practical Video

Section 14: Testing & Commissioning

Lecture 73 What is Testing & Commissioning?

Lecture 74 How to perform point by point testing?

Section 15: Graphic Workstation

Lecture 75 Introduction to the GUI workstation

Lecture 76 How to create trends in Niagara workstation

Electrical & Mechanical Engineers, Consultants, Contractors or technicians who wants to begin their career in BMS or want to deeply understand the BMS if they are already working in the field.
