DESIGN OF STEEL-FRAMED COMMERCIAL; BUILDING (G+3 STORY MULTI-PURPOSE BUILDING)

What you'll learn

Analysis Design of G+3 Steel Commercial Building with Roof Truss using IS 800 : 2007

Optimization and Finalization of Steel members

Connection Design of all possible locations

Steel Drafting and Drawings of the same project

Requirements

Basic Knowledge and Practice in Structural Analysis and Design

Basics of STAAD Pro Tools

Description

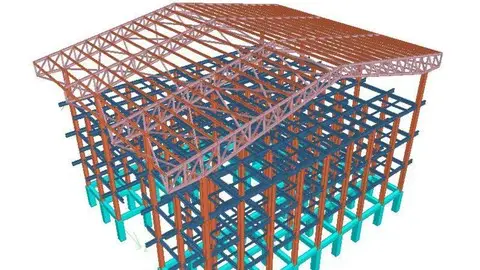

DESIGN OF STEEL-FRAMED COMMERCIAL; BUILDING (G+3 STORY MULTI-PURPOSE BUILDING) USING BENTLEY STAAD PRO, RAM CONNECTION, IDEASTATICA and STEEL AUTODRAFTER IN ACCORDANCE TO IS 800Course Flow· Analysis and design of a G+3 Steel Commercial Building with roof truss using IS 800:2007· Optimization and finalization of steel members· Steel Connection Design using RAM Connection and Ideastatica· Steel Drafting using AutodrafterPrerequisites:· Basic Knowledge and Practice in Structural Analysis and Design· Basics in STAAD ProTOOLS:· STAAD Pro· RAM Connection· IDEAStatica· Steel AutoDrafterSTAAD Pro CONNECT Edition Bentley STAAD Pro is the most popular structural engineering software product for 3D model generation, analysis and multi-material design. It has as intuitive, user-friendly graphical user interface, visualization tools, powerful analysis and design facilities and seamless integration to several other modeling and design software products. The software is fully compatible with all Windows operating systems.· For static or dynamic analysis of buildings, bridges, containment structures, embedded structures (tunnels and culverts), pipe racks, steel, concrete, aluminum or timber buildings, transmission towers, stadiums or any other simple or complex structure, STAAD Pro has been the choice of design professionals around the world for their specific analysis needs.RAM Connection CONNECT EditionRAM Connection is Bentley’s tool for steel connection design. It can be used as stand-alone or fully integrated with STAAD Pro, RAM Structural System, and RAM Elements. It has powerful connection check or design option in just a matter of seconds.It is the first fully integrated steel connection design and optimization tool in the industry. It has the most widely covered connection database globally that supports most common global design codes such as the AISC (ASD and LRFD), Eurocode, British Standards and Indian Standards. A user can easily design, check, and optimize shear, moment, gusset, splice, bracket, and base plate connections.IdeaStaticaIdeaStatica is another latest popular software for steel connection design where User can define the configurations, sections and more; totally in FEM environment.Steel AutoDrafterSteel AutoDrafter is a tool that extracts drawings and material take off from a structural steel model prepared in STAAD Pro. It produces plans at any level, and sections in any of the orthogonal directions. Once the members have been grouped and the frame completed, the model should be analyzed. Steel Autodrafter requires that the model be successfully run before it can import and be used as drafting model.

Overview

Section 1: 01 Introduction of the Course

Lecture 1 01.01 Introduction of the Course

Lecture 2 01.02 STAAD Pro 2023 Interface

Lecture 3 01.03 Global Axes

Lecture 4 01.04 Local Axes

Lecture 5 01.05 View Menu

Lecture 6 01.06 Text Editor

Section 2: 02 Project Overview

Lecture 7 02.01 Plan, Elevation of the Project

Section 3: 03 Loadings (Overview)

Lecture 8 03.01 Loadings (overview)

Section 4: 04 Modelling, Supports, Material, Specifications, Loads Assignment and Load Comb

Lecture 9 04.01 Study of Project Drawing

Lecture 10 04.02-01 Create Plinth Beam

Lecture 11 04.02-02 Create First Floor Beams

Lecture 12 04.02-03 Create All Floor Beams

Lecture 13 04.03-01 Create Truss Elements

Lecture 14 04.03-02 Create Purlins and Horizontal Bracings

Lecture 15 04.04-01 Create Supports

Lecture 16 04.04-02 Create Groups

Lecture 17 04.05-01 Define Materials

Lecture 18 04.05-02 Assign Property

Lecture 19 04.05-03 Assign Specifications and Releases

Lecture 20 04.06_01 Dead Load and Live Loads

Lecture 21 04.06_02 Define Reference Load for Mass, Define EQK Load

Lecture 22 04.07_01 Wind Load Calculation

Lecture 23 04.07_02 Wind Load Cases

Lecture 24 04.08_01

Section 5: 05 Earthquake Load Assignment Procedure (Special Case)

Lecture 25 05.01 -01 Assign Earthquake Load

Lecture 26 05.01-02 Check Drift Limit due to EQK

Section 6: 06 Steel Design Parameters as per IS 800

Lecture 27 06.01-01 About IS 800 Steel Design Parameters

Lecture 28 06.01-02 Steel Parameter-01

Lecture 29 06.02 Steel Parameter-02 (Slenderness Check)

Lecture 30 06.03 Steel Parameter-03 (Deflection Check)

Professional Structural Engineers,Professional Civil Engineers,Civil Engineers, practitioner and students
