Basics Of Mechanism Design & Analysis For Mechanical Design

Learn about how to design and analyze planar mechanisms with case studies for mechanical engineers

What you'll learn
The Design process for mechanism design in designing mechanical systems
Basics of Kinematic concepts - Degrees of freedom, mobility, Kinematic inversions etc
Position Analysis - Loop closure equations, Finding positions of points
Velocity analysis of Simple mechanisms
Acceleration analysis
Static Force analysis
Dynamic Force , Inertia force analysis
Case studies on actual applications of mechanism design principles
Requirements
Basic understanding of mechanics
Background on Math concepts like Vectors , Algebra, Trigonometry
Description
Mechanisms and structures are fundamental elements of any mechanical design.In this course we will learn in depth about the fundamentals of mechanisms , the study of their motion and the application to actual product design The following topics will be covered :An overview of the mechanical design process and where mechanism design fits into the larger pictureWhat are functional requirements in product or systems design and the many functional keywordsA general approach in designing mechanisms from scratchThe difference between Analysis and SynthesisConcept of Degrees of FreedomKinematic pairs and joints and their typesPlanar and Spatial mechanisms introuctionMobility Kutzbach criteria and examplesCriteria for spatial mechanism with examplesKinematic inversionsGrashof criteria for 4 link mechanismsBasics of position vectorsLoop closure equationsFinding position of a point on linkVelocity analysis BasicsVelocity analysis of 4 link mechanism and slider crank mechanismsFinding velocity of any point on the linksAcceleration analysis introductionProblems in acceleration analysis - How to find absolute accelerations for any point on the linkStatic Force analysisDynamic force analysis and concepts of Inertia , D'alemberts principle appliedProblem in dynamic force analysisCase studies in application of mechanism design to product design or systems design This course is a deep dive in the world of mechanisms and the main purpose is to form a strong foundation to apply in actual engineering problems and go towards advanced design Learning Outcomes AimedDevelop a strong conceptual understanding of designing mechanism from fundamentalsAbility to develop analyses of mechanisms and understand the motion thoroughlyDevelop understanding of the design process for new design

Overview

Section 1: Introduction & fundamentals

Lecture 1 Introduction to course

Lecture 2 Overview of design process

Lecture 3 Breaking down functional requirements - mechanism design

Lecture 4 General approach in mechanism design

Lecture 5 Analysis and Synthesis

Lecture 6 Degrees of freedom concept

Lecture 7 Kinematic Pairs

Lecture 8 Mechanism and Kinematic chains

Lecture 9 Assumption of rigidity

Lecture 10 Planar and Spatial mechanism

Section 2: Mobility

Lecture 11 Mobility Criteria - Kutzbach criteria for Planar mechanism

Lecture 12 Application of Mobility criteria - Examples

Lecture 13 Exception to Kutzbach criteria

Lecture 14 Criteria for Spatial mechanism

Lecture 15 Kinematic Inversions - Slider crank and 4 bar

Lecture 16 Grashof Criteria

Section 3: Position analysis

Lecture 17 Position analysis basics of vectors

Lecture 18 Loop closure equation - 4 bar link

Lecture 19 Loop closure equation Slider crank

Lecture 20 Finding absolute position of a point on coupler of 4 bar link mechanism

Section 4: Velocity analysis

Lecture 21 Velocity analysis- Basics

Lecture 22 Velocity analysis of a coupler link of 4 Bar mechanism

Lecture 23 Velocity analysis problem 1 part 1

Lecture 24 Velocity analysis problem 1 part 2

Lecture 25 Velocity Analysis Problem 2

Section 5: Acceleration analysis

Lecture 26 Basics of Acceleration

Lecture 27 Problem 1 - Acceleration analysis

Lecture 28 Problem 2 - Acceleration Analysis Part 1

Lecture 29 Problem 2 - Acceleration Analysis Part 2

Section 6: Force analysis

Lecture 30 Force analysis Introduction

Lecture 31 Static Force Analysis -4 bar mechanism

Lecture 32 Static Force Analysis - Slider Crank mechanism

Lecture 33 Dynamic Force analysis- Inertia and D'alemberts principle

Lecture 34 Double Slider problem- Find Inertia

Section 7: Design case studies

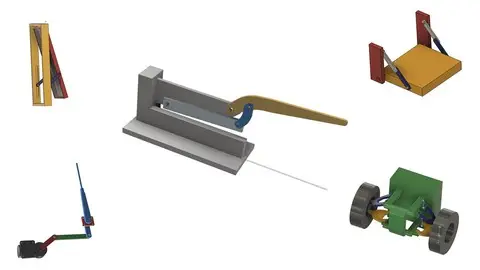

Lecture 35 Case study 1 - Retractable Seat

Lecture 36 Case study 2 - Window opening mechanism

Lecture 37 Case study 3 - High camber suspension system

Lecture 38 Case study 4 - Windshield Wiper system

Lecture 39 Case study 5 - Press Brake shear for cutting sheets

Section 8: Test your knowledge

Design engineers who regularly apply or want to apply engineering principles on product and systems design,Engineering students
