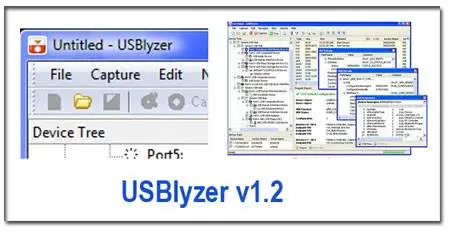

USBlyzer v1.2

×

USBlyzer v1.2

Close

USBlyzer can be successfully used for application, device driver and hardware development and can help you test and troubleshoot software and hardware.
USBlyzer is a complete software solution, so you won't have to install any additional hardware or software.

You'll find USBlyzer extremely useful for understanding how system-supplied and vendor-supplied USB device drivers communicate with the USB driver stack.

Here are some key features of "USBlyzer":
· Completely customizable interface with docked windows and user-defined screen sets.
Viewing
· Display all plugged USB devices in a hierarchical auto-refreshed tree-view.
· View and explore the USB Devices and their components.
· View detailed USB-related information about each USB device: Device Descriptor, Configuration, Interfaces, Endpoints, etc.
· View detailed PnP-related information about each USB device: Hardware IDs,
Instance ID, Software Key, PDO Name, etc.
Capturing
· Real-Time monitoring at any level in the USB driver stack from USB Host Controller to target USB Device.
· Capture several USB devices simultaneously.
· Separate log records for request issue and completion.
· Capture almost all types of USB Request Block (URB).
· URB_FUNCTION_SELECT_CONFIGURATION
· URB_FUNCTION_SELECT_INTERFACE
· URB_FUNCTION_ABORT_PIPE
· URB_FUNCTION_TAKE_FRAME_LENGTH_CONTROL
· URB_FUNCTION_RELEASE_FRAME_LENGTH_CONTROL
· URB_FUNCTION_GET_FRAME_LENGTH
· URB_FUNCTION_SET_FRAME_LENGTH
· URB_FUNCTION_GET_CURRENT_FRAME_NUMBER
· URB_FUNCTION_CONTROL_TRANSFER
· URB_FUNCTION_BULK_OR_INTERRUPT_TRANSFER
· URB_FUNCTION_ISOCH_TRANSFER
· URB_FUNCTION_GET_DESCRIPTOR_FROM_DEVICE
· URB_FUNCTION_SET_DESCRIPTOR_TO_DEVICE
· URB_FUNCTION_SET_FEATURE_TO_DEVICE
· URB_FUNCTION_SET_FEATURE_TO_INTERFACE
· URB_FUNCTION_SET_FEATURE_TO_ENDPOINT
· URB_FUNCTION_CLEAR_FEATURE_TO_DEVICE
· URB_FUNCTION_CLEAR_FEATURE_TO_INTERFACE
· URB_FUNCTION_CLEAR_FEATURE_TO_ENDPOINT
· URB_FUNCTION_GET_STATUS_FROM_DEVICE
· URB_FUNCTION_GET_STATUS_FROM_INTERFACE
· URB_FUNCTION_GET_STATUS_FROM_ENDPOINT
· URB_FUNCTION_VENDOR_DEVICE
· URB_FUNCTION_VENDOR_INTERFACE
· URB_FUNCTION_VENDOR_ENDPOINT
· URB_FUNCTION_CLASS_DEVICE
· URB_FUNCTION_CLASS_INTERFACE
· URB_FUNCTION_CLASS_ENDPOINT
· URB_FUNCTION_SYNC_RESET_PIPE_AND_CLEAR_STALL
· URB_FUNCTION_CLASS_OTHER
· URB_FUNCTION_VENDOR_OTHER
· URB_FUNCTION_GET_STATUS_FROM_OTHER
· URB_FUNCTION_CLEAR_FEATURE_TO_OTHER
· URB_FUNCTION_SET_FEATURE_TO_OTHER
· URB_FUNCTION_GET_DESCRIPTOR_FROM_ENDPOINT
· URB_FUNCTION_SET_DESCRIPTOR_TO_ENDPOINT
· URB_FUNCTION_GET_CONFIGURATION
· URB_FUNCTION_GET_INTERFACE
· URB_FUNCTION_GET_DESCRIPTOR_FROM_INTERFACE
· URB_FUNCTION_SET_DESCRIPTOR_TO_INTERFACE
· URB_FUNCTION_GET_MS_FEATURE_DESCRIPTOR
· URB_FUNCTION_SYNC_RESET_PIPE
· URB_FUNCTION_SYNC_CLEAR_STALL
Capture almost all types of Kernel-Mode I/O Requests.
· IOCTL_INTERNAL_USB_GET_PORT_STATUS
· IOCTL_INTERNAL_USB_ENABLE_PORT
· IOCTL_INTERNAL_USB_RESET_PORT
· IOCTL_INTERNAL_USB_CYCLE_PORT
· IOCTL_INTERNAL_USB_GET_DEVICE_HANDLE
· IOCTL_INTERNAL_USB_GET_ROOTHUB_PDO
· IOCTL_INTERNAL_USB_GET_HUB_COUNT
· IOCTL_INTERNAL_USB_GET_HUB_NAME
· IOCTL_INTERNAL_USB_GET_CONTROLLER_NAME
· IOCTL_INTERNAL_USB_GET_BUS_INFO
· IOCTL_INTERNAL_USB_SUBMIT_IDLE_NOTIFICATION
Capture almost all types of User-Mode I/O Requests to USB Host Controller and USB Hub.
· IOCTL_USB_GET_ROOT_HUB_NAME
· IOCTL_GET_HCD_DRIVERKEY_NAME
· IOCTL_USB_HCD_DISABLE_PORT
· IOCTL_USB_HCD_ENABLE_PORT
· IOCTL_USB_HCD_GET_STATS_1
· IOCTL_USB_HCD_GET_STATS_2
· IOCTL_USB_DIAGNOSTIC_MODE_ON
· IOCTL_USB_DIAGNOSTIC_MODE_OFF
· IOCTL_USB_DIAG_IGNORE_HUBS_ON
· IOCTL_USB_DIAG_IGNORE_HUBS_OFF
· IOCTL_USB_GET_NODE_INFORMATION
· IOCTL_USB_GET_NODE_CONNECTION_INFORMATION
· IOCTL_USB_GET_NODE_CONNECTION_INFORMATION_EX
· IOCTL_USB_GET_NODE_CONNECTION_ATTRIBUTES
· IOCTL_USB_GET_NODE_CONNECTION_NAME
· IOCTL_USB_GET_NODE_CONNECTION_DRIVERKEY_NAME
· IOCTL_USB_GET_DESCRIPTOR_FROM_NODE_CONNECTION
· IOCTL_USB_GET_HUB_CAPABILITIES
· IOCTL_USB_HUB_CYCLE_PORT
Capture state transition PnP IRPs.
· IRP_MN_START_DEVICE
· IRP_MN_QUERY_REMOVE_DEVICE
· IRP_MN_REMOVE_DEVICE
· IRP_MN_CANCEL_REMOVE_DEVICE
· IRP_MN_STOP_DEVICE
· IRP_MN_QUERY_STOP_DEVICE
· IRP_MN_CANCEL_STOP_DEVICE
· IRP_MN_SURPRISE_REMOVAL
· Automatically capture hot plugged devices. Can be used to monitor device enumeration process.
Analyzing
· Display detailed information about IRP, IO_STACK_LOCATION and URB structures associated with each captured request.
· Display the buffer contents, if any, associated with the request in hex format.
· Configurable filtering to exclude non-essential information from the view.
· Search feature to search the capture log for the particular request types.
Saving
· Saving captured requests in binary log file for later viewing.
· Export all or range of log records as plain text, CSV or HTML file.
