Vero WorkXplore 2020.1

Hexagon’s Manufacturing Intelligence division is pleased to announce the release of Vero WorkXplore 2020.1, the most powerful, full-featured, high-speed CAD file viewer and analyzer available in today's market.

WORKXPLORE 2020.1 - What's new

Specific simulation import, a couple of additional reader translators, and client viewer measurements, all feature in a number of enhancements in the latest release of WORKXPLORE

IGP Import/Export
Amongst the new and enhanced two-way workflow functionality in WORKXPLORE 2020.1 is the ability to import and export the IGP file format for the Hexagon I++ Simulator, which is a server-based software for multi-kinematic simulation of process-oriented inspections to automate production metrology.
WORKXPLORE can export either opened or closed solids, and mesh models as meshes. And it can also import meshes.
Readers & Translators
Additional reader translators include Solid Edge 2D Importer, and the IGES Reader Translator. The ability to read drawings has been added to the Solid Edge interface. Currently, 2D supported versions are ST1 to 2019. And the IGES translator allows users to choose between the in-house integrated import library, and the Datakit Advanced Import, giving a choice for the setting best suited to specific needs.
Print Option
A Print Option enhancement gives more interactive printing functionality in the single view layout, by manipulating entities over the printing. Product Owner The printing zone in WORKXPLORE 2020.1 can be defined through an interactive rectangle, with the ability to move the camera in the 3D screen.
When the command is launched, a mask corresponding to the paper ratio – for example, A4 landscape – appears onscreen. It’s then possible to move the model to precisely define the printing area. Also, another interactive rectangle provides an optional crop facility.
A toolbar with the print options is now available on the right side of the screen, making it easier to select the target printer and define its properties, select the paper size and add headers and footers.
Client Viewer
Another important new function enables measurements done in WORKXPLORE can now be export to the Client Viewer.
General
This release also continues the software’s tradition of constantly updating supported formats. Translators in WORKXPLORE 2020.1 support a number of main formats, including: ACIS, several CATIA products, Creo, DXF/DWG, IGES, EDGECAM, I++ Simulator, INVENTOR, Parasolid, STEP, Solid Edge and SolidWorks.

WorkXplore is the ideal tool for directly displaying and evaluating 3D CAD files without the need for the original CAD application. The intuitive, easy-to-use interface enables novice and experienced users alike to explore any type of 2D/3D CAD file.

WORKXPLORE enables users to build virtual unified prototypes or 3D models from files imported from various CAD applications. Users can work on model set up and improvements before committing time and resources to creating a real prototype.

A wide range of CAD interfaces are available: VISI, Catia V5, Catia V4, Unigraphics, Parasolid, Pro/E, SolidWorks, Solid Edge, Cadds, IGES, STEP, Unisurf, STL (binary and ASCII), VRML, DXF, DWG, HPGL.

WORKXPLORE has been created for the efficient import and analysis of files of all sizes and types but it is the speed at which it imports large 3D CAD files which is particularly impressive, often taking less than half the time to open a file compared to the original CAD application.

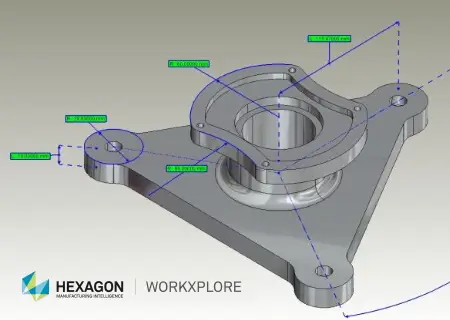

The software saves the native CAD data in its own lightweight format enabling users to calculate surface areas and volumes, measure thickness, dimensions and angles and much more without requiring the original CAD data. This lightweight format can be easily transmitted to other project members via email.


Hexagon’s Manufacturing Intelligence Division helps industrial manufacturers develop the disruptive technologies of today and the life-changing products of tomorrow. As a leading metrology and manufacturing solution specialist, our expertise in sensing, thinking and acting – the collection, analysis and active use of measurement data – gives our customers the confidence to increase production speed and accelerate productivity while enhancing product quality.

Hexagon acquired Vero Software, a specialist in CAD CAM software, in 2014 and has continued to expand and diversify its offering.

Product: Vero WorkXplore
Version: 2020.1
Supported Architectures: x64
Website Home Page : www.workxplore.com
Language: english
System Requirements: PC *
Supported Operating Systems: *
Size: 393.8 mb
