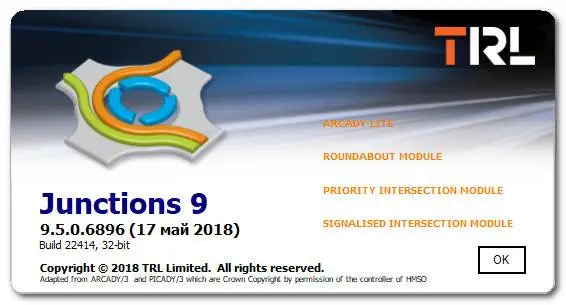

TRL Junctions 9.5.0.6896

Junctions 9 is the latest version of TRL's industry-standard package for modelling roundabouts, priority junctions and simple signalised junctions. Junctions 9 consists of ARCADY 9 (the Roundabout Module), PICADY 9 (the Priority Intersection Module), and OSCADY 9 (the Signalised Intersection Module), each of which is sold and licensed separately. All three modules use a shared user interface.

Core Modelling Features
UK empirical models for roundabouts and priority junctions
Accident prediction for roundabouts and priority junctions
Geometric delay for roundabout and priority junctions
Signal evaluation and optimisation for signalised junctions
HCM 2010 models for roundabouts, TWSC and AWSC

Roundabout Geometry Measurement Tools
The junction diagram includes tools to help with the measurement of standard and mini-roundabout geometries, such as entry width, flare length, entry radius. These work by providing a set of control points and construction lines which can be dragged to coincide with the appropriate points on a background image or drawing of the junction. Junctions 9 uses these control points to calculate the ARCADY geometries which can then be automatically saved in the file.

Revised Mini-roundabout Model
Data from the original mini-roundabout model (first introduced in ARCADY 5) has been re-analysed and as a result a revised model is now available. In typical cases, this tends to predict slightly higher capacity. Data input is identical to previous versions.

Audit Trail
The Audit Trail system provides a way of tracking the version history of the file, which is especially useful for complex files or when a file is worked on by several people. Junctions 9 can optionally record each change made to the file, forming a log of all changes. The same system also allows users to manually enter the overall status of the file.

System Requirements
Windows 7 or above

Home Page - https://trlsoftware.co.uk/
