SuperSpeed SuperCache v5.0.524.0 x64
SuperSpeed SuperCache v5.0.524.0 x64 | 6.4 MB
SuperCache 5 implements patented block-level caching technology to raise system performance beyond that of the NT file-level cache alone. It breaks the disk I/O bottleneck by using the server's system memory to store the most frequently used data, executing read and write requests from memory rather than from disk. SuperCache 5's core component is a storage volume filter driver which resides in the storage stack just above the storage volume class drivers.
SuperCache 5 intelligently stores frequently used disk data in system memory. The memory used to store the data is called a cache. SuperCache 5 intercepts requests for disk data and, when possible, fulfills the request using the cache instead of requesting data from the disk. When data is read from or written to the cache, the performance is similar to a RAM disk – extremely fast.
Deferred-writes
When deferred writing is enabled, SuperCache 5 accelerates disk writes. With deferred writing, write requests are fulfilled immediately by simply writing the data to the cache. Later, SuperCache 5 writes the data to the hard disk. Deferred writing is also known as lazywriting, since the write data stored in the cache is 'lazily' written to the disk afterward.
The effect of deferred writing is to 'smooth out' I/O activity on the hard drive. Applications and services with large flows of write data will especially benefit from deferred writing.
It is important to note that enabling deferred writing increases the risk of data loss in the event of a system crash or power failure. SuperSpeed Software recommends that you enable the lazy-write feature ONLY on systems equipped with an Uninterruptible Power Supply (UPS).
Why another cache?
Doesn’t Windows already have a cache? The Windows operating system supports a file-system level cache, the NT file-system cache. However, the flow of data at the file-system level and the flow of data at the block (or storage volume) level are not the same. Each level – the file-system level and the block level – represents a different data flow paradigm, or model. Optimization of flows at the file system level does not optimize flows at the block level. SuperCache 5 enhances disk I/O throughput by optimizing flows at the block-level.
When to use
SuperCache 5 is an excellent choice for these scenarios:
1. The data files are too large to fit into available physical memory.
2. The data files are located on a disk partition or disk volume that is too large to fit into available physical memory, and cannot be moved to one where they will fit.
3. The data files must not be placed on a volatile disk.
SuperCache 5 can be used to cache the system drive (e.g. drive C:), including the pagefile. It is the appropriate product when the data files of a particular program or service (e.g. database, web server, etc.) must reside on a disk partition or volume that is larger than the size of available physical memory.
Support for NUMA
Windows Server 2003 SP1 and later operating systems provide special support for machines with a non-uniform memory architecture (NUMA). When active on such platforms, the memory manager for SuperCache 5 examines the processor and memory affinities reported by Windows and the ACPI SRAT, and then optimizes physical memory allocations across the described NUMA nodes. The NUMA support in SuperCache 5 greatly improves the speed of memory allocations and equalizes the distribution of cache allocations among the NUMA nodes. Currently, NUMA support does not include the ability to build caches on specific nodes.

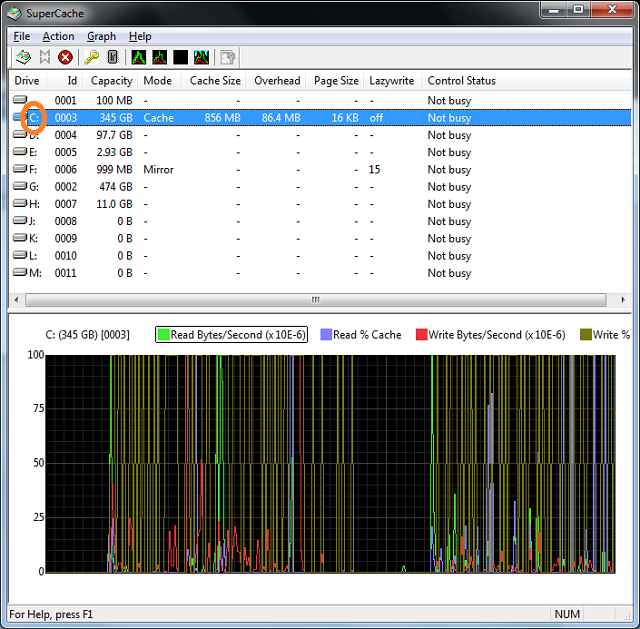

New Interface
SuperCache 5 now has a more user friendly and informative interface.
- Overview of available storage drives in system
- Caching graph showing 4 performance items
- Configure SuperCache by right clicking a volume
- Automatic configuration of boot drive (usually C:) during installation.
