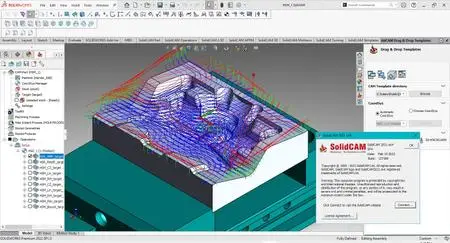

SolidCAM 2021 SP4

SOL-20392 Values of holder mounting aren`t displayed on mounting of other sub-items
SOL-20391 Tool numbers of all sub items were changed by changing one of them
SOL-20386 Language/Hebrew/Cam tree menu is not translated
SOL-20384 Toolkit/Not possible to add items to TLV
SOL-20379 Starting with the part in the sub spindle gives us wrong Setup-Loc position
SOL-20359 ToolKit\\Tool use becomes unuse by drag&drop tool from storage
SOL-20358 ToolKIt/Cannot add tool for sub-tool item in simple view
SOL-20353 NTT\\Cutting point incorrect in operation
SOL-20346 XML - Interface - Import of Cutting Point wrong, Orientation
SOL-20327 NTT\\Tool num is changed by moving the tool from storage to the magazine
SOL-20314 XML Interface - Turning Tools - Insert position at shanks not correct
SOL-20312 NTT\Manual change tool\MachSim\MashSim isn`t running
SOL-20307 Hebrew version not generating the tool sheet
SOL-20304 Machine Preview/Wrong strings in spindle orientation dialogue
SOL-20290 Difficulties with Importing Tool from CAD
SOL-20286 Measure/Wrong m\_bReverseTurret
SOL-20276After Cleanup CAM Part if we reopen the CAM part the machining time is not showing
SOL-20275 Toolkit insert thickness issue
SOL-20271 Adding submachine action and after that adding some other action before it makes submachine action forget rotation
SOL-20269 Templates || HSR-HSM || RPM data changes
SOL-20259 NTT || Creating 2D sketch tool issue
SOL-20258 tool table || allow value=0 for milling diameter & arbor
SOL-20257 HSM || Incorrect OHL
SOL-20255 Hole Wizard- Imported Countersink hole seen as a simple hole
SOL-20250 ToolKit/Shank disappears after applying some rotation
SOL-20245 General || Toolpath Info || Cutting time and Linking time shows 0
SOL-20242 Turning - Shank not displayed
SOL-20231 Wrong position of workpiece
SOL-20219 Toolkit/Component delete Message not shown
SOL-20218 Machines control Job cannot be moved
SOL-20217 Chamfer Rec./GUI Safety offset cannot be negative
SOL-20212 XML Interface - Shaped Tool - wrong geometry and wrong tool Type imported
SOL-20206 Dutch ToolSheet Part Milling include Tools Turning
SOL-20201 Turning/Threading becomes uncalculated if open ToolKit click on any parameter and save and exit
SOL-20199 Part opening much longer than before
SOL-20185 Sim.SolidVerify Show Tool is Wrong
SOL-20181 Gui\\feed is not in range-looks incorrect in attached part \(in inch\)
SOL-20180 SolidVerify Simulator / Showing wrong representation for some tools
SOL-20179 Sim.SolidVerify Show Tool is Wrong in the second job
SOL-20176 Sim. SolidVerify Update Stock is Wrong after first operation
SOL-20175 Template || iMachining || System Crashing down on Edit in another project.
SOL-20173 Swarf || Unknown Exception to be modified
SOL-20171 VMID/Crash on clicking on Station of Table
SOL-20150 3D tool\\Incorrect Cutting point by importing a tool
SOL-20149 Operation Tool GUI / Diameter of the tool is should be shown as Diameter from tool parameter
SOL-20146 Template not using Automatic CoordSys properly
SOL-20141 XML Interface - Turning - Cutting Points - Values for Cutting Point Offset XYZ not imported
SOL-20140 Thread Mill / Carmex / Tool is not Imported from Carmex library
SOL-20133 Engraving | No edges found
SOL-20131 ToolKit || Drag-n-drop of same component not working as it should
SOL-20130 ToolKit || Replace component not connecting to same joint
SOL-20114 MCO/Position of the MAC in MP is not correct after rearranging operations
SOL-20100 ToolKit/Cannot add sub-tool item on a holder if the holder is already inside subtool
SOL-20097 Turn Drill jobs || Doing Save&Exit on calculated job will clear the pdump
SOL-20066 THSR || Unknown Changed Parameter-2
SOL-20060 MW based operations || Pcode gets deleted if same geometry used in other operation
SOL-20052 NTT\\tool near mouse is incorrect in sp4 and DV in the attached part
SOL-20045 Forced leading Zero in input fields \(iMachining\)
SOL-20044 GUI/Preview of part on open tab is empty with SW2022
SOL-20043 XML Interface – Tool import crash
SOL-20039 GUI/Machine Simulation not translated
SOL-20036 3D iMachining | step-up not complete
SOL-20016 Change JobUser dialogs of "Depth by:"
SOL-20013 Sim5x || Changing sketch for Tilt Curve does not synchronize
SOL-20010 Rotary Machining || SolidCAM crashes
SOL-20006 \\NTT\\old turning types of tools-convert inch mm, mm-inch is missing
SOL-19992 Milling || Transform Rotate || no shift to rotation point on MAC1-1
SOL-19991 Swarf || Check surface edit gives error
SOL-19988 HSS || Gouge check surfaces with cleanup cam part issue
SOL-19983 ToolSheet / Operations Summary does not output
SOL-19973 SC is stopped working by running HostCAD simulation
SOL-19971 CAM Part/Loosing synchronization of geometry on internal part
SOL-19960 GUI/Toolkit/Rearranging and putting number to second position cause overlapping of the elements of the ToolKit in Dutch version
SOL-19959 Tool near mouse is not correct
SOL-19950 ToolKit - Search - Tool Number not seem correct
SOL-19935 HSS || Levels Exit safety distance issue
SOL-19929 Gcode/HH kinematics wrong rotated position
SOL-19925 G-code/Inverse feed is wrong in inch part
SOL-19914 MS | wrong tool parameter is sent to MS to build the tool
SOL-19884 Edge Trim || Exception generated at Advanced tab
SOL-19883 Last but one LINE\_5X is RAPID instead LINK
SOL-19875 Hole Wizard Table || Incorrect type saved for New Machining Process table inside Hole Wizard Table
SOL-19869 ToolKit\\Quick Filter\\fields disappear after reset or changing window size
SOL-19867 Drag & Drop || Levels || Associative Levels are not synchronized according to design model changes.
SOL-19864 ToolKit/ Import Tools from 3rd party/NEOITA is not working
SOL-19860 Machine Preview/vMac is not correct for turning operation
SOL-19859 THSR || Changed paramaters for converted operation
SOL-19858 Sim5x || Edge trim Strategy opens instead of sim5x
SOL-19850 Turning/Tool angle is chosen wrongly
SOL-19847 Vericut/MAC is not in the correct place and work offset is wrong
SOL-19843 /Gcode/Proc with LEVEL 1/Missing proc in channel
SOL-19840 Coord system/Mill-turn/Error message while try edit position
SOL-19832 @call\_proc | Drilling: job\_name is missing
SOL-19823 Geodesic || Mirror || Wrong Tool direction
SOL-19822 SolidWorks crashes when we try to close a part
SOL-19821 Gcode/MW /Not rounded variables
SOL-19814 G-code/Missing shifts for H machine with 4x transform
SOL-19808 Simulation/Get crash on simulate with 3D stock model
SOL-19805 NTT\\Feed Z is wrong when pitch TPI
SOL-19802 ToolKit\\Tool table stops working
SOL-19798 SolidCAM Hole Wizard Process - Can't define Process type
SOL-19789 Toolkit/Crashing on adding than deleting cutting point with beta options turned on
SOL-19786 ToolKit/Drag & Drop to rearrange non-cutting point causes crash of SolidCAM
SOL-19774 Turning\\Crash in operation turning drill
SOL-19769 NTT || Tool holder selection issue
SOL-19768 NTT/Converted Cam Project turning Tool feed and speed issue
SOL-19744 Gcode generation/Cimco/SolidCAM crash when we generate the G-code
SOL-19741 Machine Preview/Position of the tool is not correct when using flip and Spindle orientation
SOL-19739 iMachining 2D/Long calculation time
SOL-19720 Swiss/Channel Synchronization/wrong label choice
SOL-19696 NCView - Holder Profile incorrect
SOL-19695 NCView - Shaped Tools - Shank not exported
SOL-19694 G-code/opos set should have change bit set to F with internal procedures
SOL-19683 Install in inch || parameters in m SOL-19681m
SOL-19681 G-code/HH by Kinematic with unparalleled axis
SOL-19674 ToolKit || Bad convert of 2D Sketch holder
SOL-19667 G-code/Not rounding spin\_teeth and feed\_teeth
SOL-19666 Multi Depth Drill / Unable to Edit or Delete the 2nd Intermediate level
SOL-19663 G-code/Wrong apos value and direction for wrapped operation without interpolation for distance turned on
SOL-19662 Stock definition || 3D model offset || precision value is not taken from cam settings.
SOL-19661 4x Drill | Around Z | With Cycle - doesn't work
SOL-19659 filter || Drill geometry not selected with multiposition & by radius filter
SOL-19657 Suppress || PJ file of stock based job gets deleted
SOL-19652 Zoller - Turning Tools - INCH - Shank Parameter not imported
SOL-19642 Sim5x || Advanced Levels check box disabled
SOL-19636 Getting started/HSM\_Turbo/3x\_Undercut\_target\_2 job can not calculate
SOL-19631 Change hard coded strings
SOL-19627 General || Rapid motion in G1 mode || Rename Parameter
SOL-19625 Machine Simulation/Superimposition/Wrong Turning tool last position
SOL-19621 Machine Simulation/Unload tool/Wrong extra movement
SOL-19620 Machine Simulation/Spot Drill and Drill tools are in the wrong position in the machine simulation
SOL-19618 MCO/Parameter is lost if rotation is defined in setup
SOL-19616 MCO/Wrong MAC1-1 orientation if in Setup is rotated part and afterwards in MCO again
SOL-19601 General || Rapid motion in G1 mode || Rename Parameter
SOL-19598 G-code/Wrong order of procedures for turn thread
SOL-19597 MCO/Small bug with initial position of the stock
SOL-19581 Face milling / roll-in from wrong direction
SOL-19579 Machine Preview/Wrong machine preview in Cutoff operation
SOL-19548 Geodesic & Sim5x || SC crash
SOL-19542 tool table || center and spot drill cannot insert a value of 180 degrees
SOL-19511 Drag and Drop don't make depth associative to the face on wich we drop
SOL-19488 Incorrect or unset changebits for Use Cycle19
SOL-19470 Enable Drag Drop Template Task Plane / extremely long calculation time
SOL-19467 Gcode/Arc direction is wrong in @arc PTM=Y
SOL-19462 G-code/side\_h in compensation is not -9999 but -15
SOL-19460 Gcode/Arc direction is wrong in @arc\_yz PTM=N
SOL-19448 MCO/Crash on working with MCO Fixed
SOL-19436 Turning/Trailing/no paths to contour
SOL-19434 HSS & Sim5x || Automatic lead-in Arc radius
SOL-19430 ToolKit\\tool and holder connection is incorrect in sv sim only
SOL-19426 Toolsheet || CAM Settings || Unused Tools are not printed inside the Document.
SOL-19421 iMachining settings/Cannot select any .dll for Toolpath engine in unofficial SP3HF2 version
SOL-19420 Customer/iMachining/Not complete toolpath when Toolpath Engine is selected
SOL-19416 MCO/Current Loc' is incorrect when using Part Coordinates
SOL-19404 Gcodesimulation - Exported Driven Point ID - wrong Parameter exported
SOL-19403 THSR || G0 in G1 UI issue
SOL-19396 Drive curves conversion || Regression bug - Unable to calculate the tool path
SOL-19391 Machine Simulation/Tool holders are wrongly exported to the Machine Simulation
SOL-19381 SolidCAM Simulator/Not correct message in Traditional Chinese
SOL-19378 THSR || Feedrate for Direct/Spline links input tabs
SOL-19346 Gcodesimulation - removed Operation still exported as Gcode to Vericut
SOL-19341 NTT\\Chinese Traditional\\Tool icons is trimmed
SOL-19336 Geodesic || Exception to be modified
SOL-19335 Multiaxis Rough || Modify exception
SOL-19332 G-code/Not correct coordinates and angles when using custom by 2
SOL-19329 Multiaxis Machining || Check with in-process stock
SOL-19325 G-code/Print in trace values to selected precission in VMID for variables that are not being printed still
SOL-19313 Mill-Turn/ Change of post hide tools
SOL-19301 Change of post damage part in 2DiMachining job
SOL-19286 Taper Mill Issues in 2021 ToolKit
SOL-19282 G-code/spin is not taken from GUI from Manual Turning in @turn\_change\_tool
SOL-19274 Tool center based calculation || To remove the option
SOL-19261 Geodesic || Side Tilt-Contact point || Remove the support of Tool contact point
SOL-19260 HSS/Missing value for surface vectors for "blend spline" link
SOL-19230 THSR || Profile pass Spacing Exception to be modified
SOL-19211 G-code/Customer/Radius of the arc is not the same for two same geometries
SOL-19197 HSS || Area Type Margins negative value error
SOL-19185 NTT - Problem with funktion "take over feed rates/speed from tool catalog"
SOL-19165 Zoller | Cutting conditions | incorrect combination of RO & FI params
SOL-19164 Zoller | Cutting conditions | Feeds = 0
SOL-19159 Vault - öüä in the pathname forces an error file not found
SOL-19158 Vault - Connection failed
SOL-19133 SolidVerify/Missing tool and toolpath in simulation
SOL-19131 NTT - Tool Station Index wrong after open the Part, forces in Gcode Offset D0 what will crash a Machine
SOL-19115 Toolsheet/Menu with include options are not working correctly
SOL-19108 NTT\\tool 2 in the job 2-incorrect orientation after convert
SOL-19093 G-code/Wrong apos for wrapped operation
SOL-19084 Gcode/label is wrong in @end\_proc for thread mill
SOL-19060 General/Cam Settings Problem after Install program in INCH
SOL-19057 Geodesic || Side Tilt-Contact point || Remove the support of Tool contact point
SOL-19042 Geodesic 3x || Levels Advanced || Arcfit radius field
SOL-19040 NTT // General // Lollipop Mill is shown as ENGRAVING Tool Type inside Tool-Type Drop Down
SOL-19037 Internal Cam-Part / Crashing on close of Internal Cam saved projects
SOL-19034 NTT\\tap tool in turn drill operation-cutting conditions in job works incorrect-chosen spin Milling instead of turning
SOL-19029 THSM || Scallop value cannot be entered
SOL-19011 Milling/CAM Tree/No information message that the Z-depth is below
SOL-19008 3D iMachining works where there is no material
SOL-18975 Turning || After converting from previous version the turning tool is missing in two operations
SOL-18967 Templates || Target geometry on Template Common data
SOL-18966 Rotary Machining, Finish & Edge break || Target Geometry does not appear as default
SOL-18964 Vericut - Design model not exported when Stock model is not defined
SOL-18961 Multiaxis Machining || Check with in-process stock
SOL-18958 Turning/Problem with Gearbox Stages
SOL-18957 Sim5x || Tool axis control || 4 axis resets to 5 axis
SOL-18933 THSM || Linear || Optimal machining angle || Modify error
SOL-18925 Templates/Geometry is not saved correctly
SOL-18922 HSR&HSM | Wrong toolholder data passed to MS
SOL-18921 \\NTT\\2D Tool\\Refresh parameters tool tabs&Tool View
SOL-18920 Portuguese GUI translation issues
SOL-18918 GUI/Portuguese GUI translation issues/Thread and CutOff Operation
SOL-18900 THSM || Horizontal machining || Constraint boundaries
SOL-18887 Not getting on tool sheet the adaptor information
SOL-18866 Face Mill - Spiral toolpaths are output incorrectly
SOL-18840 Edge trim || Mirrored toolpath || Wrong Tool Orientation
SOL-18811 Documentation\\Tool Sheet/Dutch Pages are empty
SOL-18801 Deep Drill | drill\_cycle\_name problem
SOL-18783 Opening PRZ directly by double-click is automaticlly converted to new version without dialog
SOL-18776 iMachining - No iRough path, working area too small = no iFinish path
SOL-18762 NTT\\drill Near mouse and on the picture of job is incorrect
SOL-18715 XML Interface - Shoulder Length wrong after Import \(Zoller\)
SOL-18700 GUI/Portuguese GUI translations issues
SOL-18684 Zoller - Inch System - Insert looks scaled by 25.4
SOL-18656 GUI/Toolkit/Value in OHL parameter in operation is different than inside of NTT
SOL-18632 MAC to MAC Transform issue
SOL-18625 Zoller | XML import into NTT | Offset name
SOL-18596 NTT/ Crashes On Tool Library Import
SOL-18566 Hole Wizard // Levels // Incorrect upper level Taken for Tapped Holes
SOL-18479 Toolkit/Parameter OHL is not correct
SOL-18463 HSM/Cutting into a part
SOL-18327 Swarf || Machine Simulation || Tool gouges Machining surfaces
SOL-18318 Inverse Time Feed Rate is Calculating Incorrectly in SC2021 SP2HF1
SOL-18314 Milling / Taper Mill Tool / Cutting point issue
SOL-18251 Radial Roughing || Crash
SOL-18173 3d contour not calculated
SOL-18172 Geometries lost
SOL-18101 Gcode/Wrong change bit for feed in first and second @line\_5x for Rotary machining
SOL-18054 HSR/HSM Damages Part after converting Part from 2019>2021
SOL-17972 SolidCAM Simulator / Turning / Detect wrong collision in all Internal Turning operations
SOL-17969 Turning cycles/Check box "With Rapid"
SOL-17562 Turning / 4x sim / 3D Tool
SOL-17483 Pocket/ Extensions for open pocket geometry damage target
SOL-17179 HSS/Missing value for surface vecotrs for "blend spline" link
SOL-16928 First lead-in is not extended in pocket detection
SOL-16528 MCO/Wrong slave axis movement
SOL-16480 Edge Breaking/Min. detected edge angle influence Manual selection of edges
SOL-16468 THSM || Tool Inspection/Change option
SOL-16370 Error copying non Permanent Tool
SOL-15855 Geometry Selection/Chain selection "Select other" Issue
SOL-15391 Machine Simulation/Error message/Simulation object loading error. Error setting Operation 0.
SOL-13889 THSR || Adaptive stepdown || Modify Error 1
