SimApp v2.61

SimApp is a dynamic simulation application created for modeling systems in the time and frequency domains. SimApp offers significant simulation power at a reasonable price, while reducing learning time. Once the dynamic behavior is understood, changes to the system can be made or control systems can be designed to make the system perform as desired.The computer simulation model is built visually through block diagrams. These signal-flow diagrams can represent a virtually unlimited range of systems. You may also elect to represent models in a matrix form (continuous or discrete), or as difference equations for digital controllers. You can use SimApp to evaluate analog feedback systems or digital systems implemented in a controller.

SimApp contains many features that help you grow the model sophistication to the level needed for realistic results. Non-linear elements and custom inputs bring reality to the models. SimApp can also help you hide model complexity by building commonly used elements or subsystems into custom blocks. In this way you can also make SimApp your own - and uniquely tune it for your field of expertise.Time plots show the operation of your system at any point, as if you had connected an instrument to it. Plots can be made of the system over time to measure responses to external stimuli. Probes can be placed anywhere in the model and the results can be graphed or viewed in table form. Model results can be copied for use by other applications.Dynamics and control analysis can be performed in the frequency domain (Bode and Nyquist plots, Eigenvalues). This helps you determine stability of the system and evaluate strategies for optimization of performance.

The SimApp Desktop is intuitive and well organized to make simulation modelling easy. Diagrams created in SimApp are easy to copy to your document applications. You can open and work on several SimApp models at one time.

Simulation in the time domain:
SimApp provides a numerical simulation that shows responses to inputs over time. Input sources for the dynamic system include constants, sine waves, step functions, and user-defined profiles

.Groups of system responses can be overlaid on a single diagram SimApp is designed for the simulation of the following types of systems:
*Linear and non linear
*Time-invariant and time-varying
*Continuous and discrete
*Single Input Single Output (SISO)
*Multiple input, multiple output (MIMO)
*The output data are listed in tables tables and plotted in scalable time diagrams and x/y graphs.
*A movable cursor is available for signal measurements. The results can be stored with the block diagram.

Simulation in the frequency domain:
For linear and time-invariant systems, SimApp creates Bode- and Nyquist diagrams and a table with the characteristic values (eigenvalues) of the evaluated system. Frequency probes measure the system at desired points. Frequency response plots can show open loop and closed loop behavior on one Bode Plot.

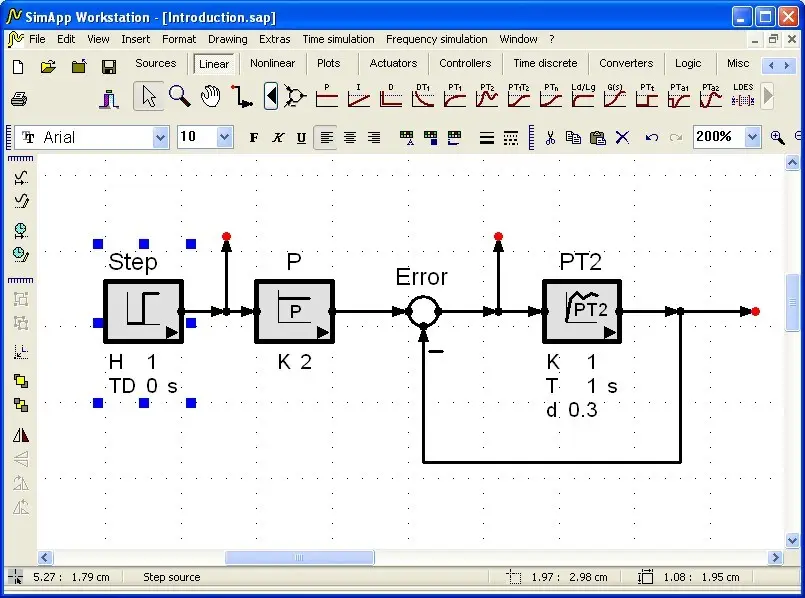

Standard block diagram elements:
SimApp has many basic blocks that can be selected by clicking on them. They are interconnected by wires to make complete systems. Most basic blocks have two alternative symbols. They show an icon of the response, or the mathematical representation of the transfer function. To review a list of functions, start a trial or review them here

List of functions:
*Sources: Constant, Ramp, Step, Oscillator, Pulse, Pulse width modulator, Timer, Trigger, Driving curve, Noise, User defined, File
*Graphs: Time Probe, Frequency Probe, XY Graph
*Linear: Proportional, Integrator, Differentiator, DT1, PT1, PT2, PT1T2, PTn, Lead/Lag, G(s), Dead Time (PTt, with Padé approximation), 1. Oder and
*2. order allpass, Linear differential equation system.
*Nonlinear: Square, Square-root, Multiplier, Divider, Arithmetic, Multi-function element with single input and 31 selectable distinct functions (sin, cos, tan, cotan, asin, acos, atan, sinh, cosh, tanh, asinh, acosh, atanh, exp, 2^x, 10^x, x^2, x^3, ln, lb, lg, x^A, A^x, logA, Square Root, |x|, sign, DegRad, RadDeg, CycleRad, RadCycle), Multi-function element with two inputs and 10 distinct functions (+, -, :, /, x^y, x^1/y,Sqrt(x^2+x^2),arctan(x/y),Min(x,y),Max(x,y)), User characteristic, Saturation, Dead Zone, Preload, Backlash, Minimum/Maximum, Peak detector.
*Controllers: 2-point and 3-point step, PI Controller (ideal und modified), PD Controller (ideal und real), PID Controller (two ideal implementations and three real respectively modified implementations, anti-windup), Adaptive PID controller, Lead/Lag Controller.
*Time discrete: Sampler,Zero order hold, Sample and hold, Integrator, differentiator, Unit delay, PID controller, G(z), Filter, Linear difference system.
*Converters: Analog to digital (ADC), Digital to analog (DAC), Analog to binary (ABC), Binary to analog (BAC), Quantizer.
*Logic: Logic 0 source, Logic 1 source, AND, OR, XOR, NOT, SR Flip-Flop, JK Flip-Flop, D-Flip-Flop, Monoflop, On/Off delay
*Miscelaneous: 1:2 and 2:1 Switch, 1:n and n:1 Multi-switch, Triggered sample and hold, Controllable delay, Relation, Window comparator, Zero crossing, Step ramp.
*Special: Transmitter and Receiver.
*Drawing Tools: Lines, Polylines, Rectangles, Ellipses, Polygons, Pictures.

Features of "SimApp":
· Non-linear elements
· Custom blocks
· Extending SimApp
· Drawing capabilities

What's New:
· New output block; new inverter block; algebraic loop highlighting, improved line handling, bug fixes
