Siemens Solid Edge ST5 Update 4

–––––––
Release Notes:
–––––––

Product: Solid Edge

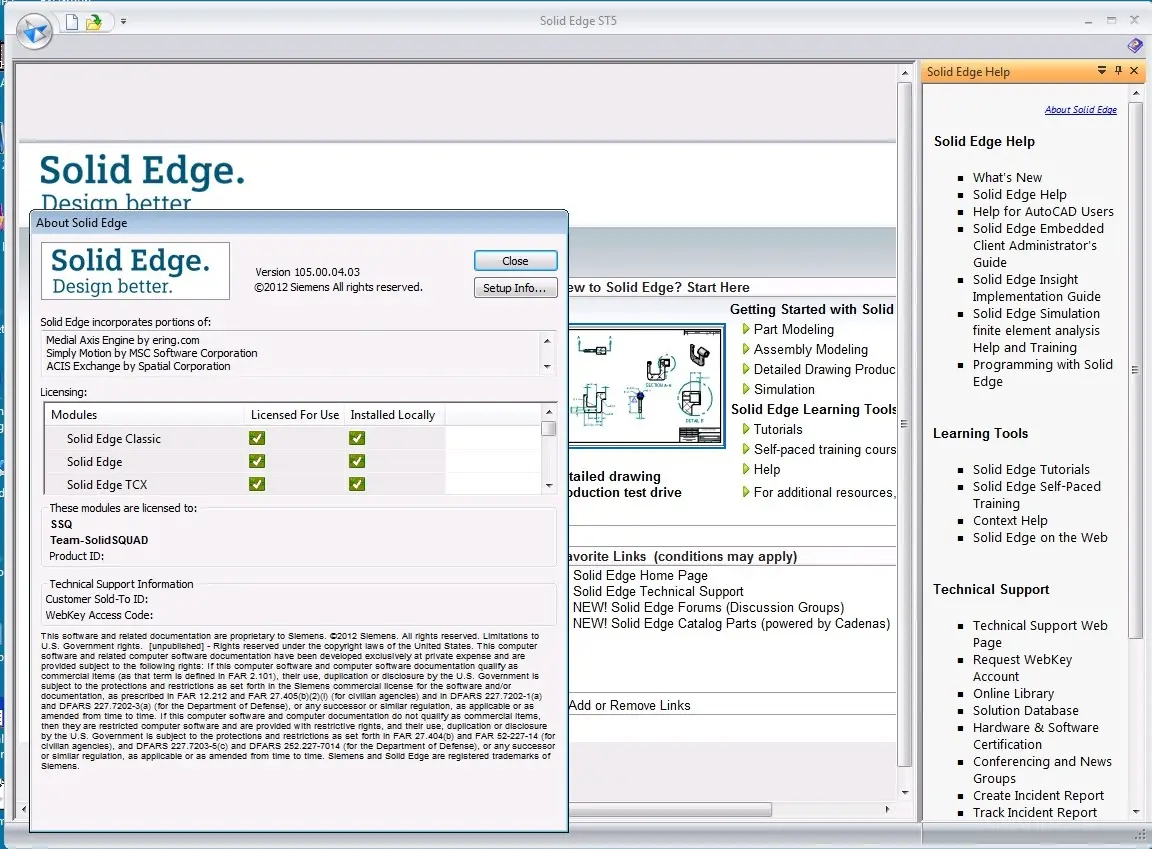

Version: 105.00.04.03
Date: 15-Feb-2013

Note: Maintenance Packs are all inclusive and can be installed on top of the base
release or any released Maintenance Pack.

This Maintenance Pack can be installed on top of Version:
105.00.00.102, 105.00.01.15, 105.00.02.06, or 105.00.03.03.


–- Windows 8 –-

Solid Edge ST6 will be the first release to support Windows 8.

Solid Edge ST5 does not support Windows 8. Any ST5 issues that are
specific to Windows 8 or IE 10 cannot be addressed until ST6.

Based on limited testing, most Solid Edge operations (Part, Sheet Metal,
Assembly and Draft) work the same as on Windows 7 and Windows 8. On
Windows 8, we highly recommend installing Solid Edge ST5 to a non-default
location (somewhere other than the default Program Files folder).

In some cases, .NET 3.5 had to be manually activated to use Solid Edge
Tutorials, Insight, and Simulation Express.

Solid Edge License Utility, License Borrowing, Embedded Client, Insight
XT, Web Publisher, and Engineering Reference have known problems on
Windows 8 and will not work successfully with ST5.


––––––––––
End of Release Notes
––––––––––

–––––––––-
Installation Notes:
–––––––––-

After downloading the Maintenance Pack to your machine, unbundle the zip file and
then dbl click on exe to install the Maintenance Pack.

Windows 7 Installation tips: In addition to turning off UAC, right click on the exe
and select "run as administrator" to complete the installation.

Windows 7 Tip: Most of the UAC security conflicts on Win7 can be avoided by installing
Solid Edge somewhere other than the default “Program Files” folder. Install in a location
like c:\SolidEdge\ that the user has full permission to write to.

–––––––––-
End of Installation
–––––––––-

–––––––––––––––––––––––––
This Maintenance Pack addresses the following PRs:
–––––––––––––––––––––––––

===Assembly===

PR 1909611: Pipe phantom cannot be deleted from pipe assembly
PR 1919956: ESC is not always exiting the Assemble command in some after a relationship is created
PR 1925580: crash while using RMB click in Selection Manager Mode
PR 1926615: reference plane normals are not highlighting during Assemble
PR 1926616: Construction Display button is disabled when running Assemble with a subassembly selected
PR 6804611: not able to create an assembly Connect relationship with a negative offset value
PR 6805124: Relationship edit control does not stay at bottom with application window change
PR 6805702: Relationship edit doesn't enable all four step buttons
PR 1922137: Mesh cannot be created for Beam studies that have small curves
PR 6796295: Peer Variable Active Model works only once
PR 6836549: Section View causes Solid Edge to freeze

===Draft===

PR 6799664: Crash when you click/change focus out of Solid Edge
PR 1879674: Linked Excel file not updating in this workflow
PR 1921672: abort during save due to invalid boundary data associated with a sectioned view
PR 1927822: Drawing View scale display doesn't update correctly
PR 2211543: Parts List "copy contents" is creating extra cells
PR 2211673: SolidEdge ends when "Chamfer Dimension" command is executed
PR 6823174: SE crashes when changing dimension to new style
PR 6827777: Our Customer Experience Solid Edge Crash With SigmundEdge Addin
PR 1928733: Hidden tangent edges are shown in section view
PR 2208971: Save is failing on draft files

===Part/Profile/Sheet Metal===

PR 1927701: "Drop Parents" destroys part, cannot be opened anymore
PR 1917790: Bend equation is not honored when using feature "Bend radius"
PR 1916638: Populating error with part family members
PR 1918549: Error when trying to use customer ST4 material.mtl file in ST5
PR 2206412: Thicken command does not return the expected result in this case
PR 6743164: rotating faces will fail due to coplanar live rule
PR 6794321: memory consumption & display performance with frame centerlines
PR 6811068: Simulation Color bar stays even if Simulation Express command is aborted.
PR 6824195: Operation on Inter-part copies in Sync creates problems.
PR 1913692: When extending parts, and adding a new characteristic, a failure occurs

–-
End
–-
