Siemens SolidEdge ST5 MP09 Update

Product: Solid Edge

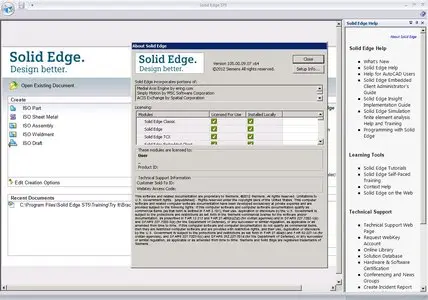

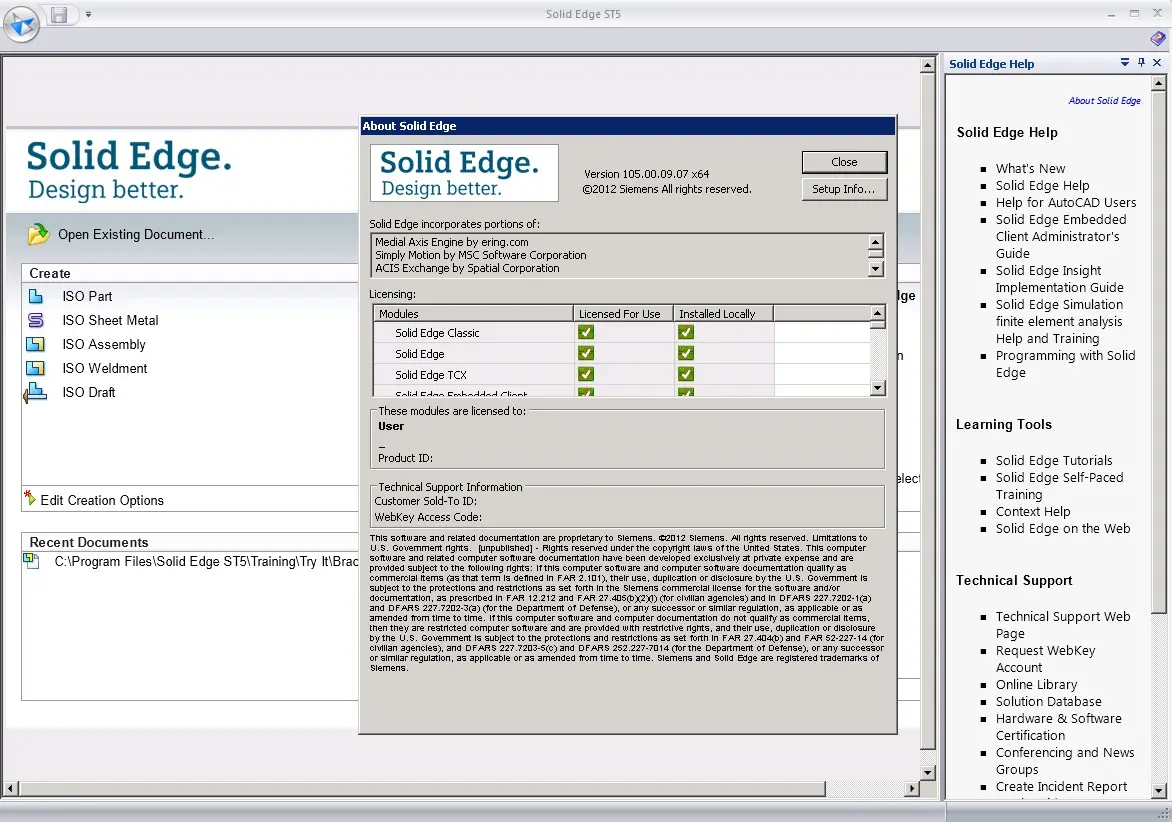

Version: 105.00.09.07
Date: 14-Oct-2013

Note: Maintenance Packs are all inclusive and can be installed on top of the base
release or any released Maintenance Pack.

This Maintenance Pack can be installed on top of Version:
105.00.00.102, 105.00.01.15, 105.00.02.06, 105.00.03.03, 105.00.04.03, 105.00.05.01,
105.00.06.04, 105.00.07.04, or 105.00.08.05.


–- Windows 8 –-

Solid Edge ST6 will be the first release to support Windows 8.

Solid Edge ST5 does not support Windows 8. Any ST5 issues that are specific
to Windows 8 or IE 10 cannot be addressed until ST6.

Based on limited testing, most Solid Edge operations (Part, Sheet Metal,
Assembly and Draft) work the same as on Windows 7 and Windows 8. On
Windows 8, we highly recommend installing Solid Edge ST5 to a non-default
location (somewhere other than the default Program Files folder).

In some cases, .NET 3.5 had to be manually activated to use Solid Edge
Tutorials, Insight, and Simulation Express.

Solid Edge License Utility, License Borrowing, Embedded Client, Insight
XT, Web Publisher, and Engineering Reference have known problems on
Windows 8 and will not work successfully with ST5.


–- Maintenance Pack Policy –

We release Maintenance Packs for CRITICAL items only. Maintenance Packs are
available up to a maximum of 15 months following the release date of the
English version. The release date for Solid Edge ST5 English was 7/20/12,
making the Maintenance Pack cutoff date 10/20/13.

–––––––––––––––––––––––––
This Maintenance Pack addresses the following PRs:
–––––––––––––––––––––––––

===API===

PR 1945218: Add an option to create 3D-PDF by SolidEgdeTranslationServices
PR 1949467: Solid Edge disappeared when using PRO.FILE Add in
PR 6906135: Fixed a problem with SEPartX.CopyEMFToClipBoard API is not working

===Assembly===

PR 1935505: Framing tool increasing JT file size
PR 6891296: Opening the provided assembly takes an excessive amount of time (1 hour) to process
PR 6909049: Frame occurrence is not being displayed in this case
PR 6916521: Place Parallel plane off existing plane/surf when moved it will flip 180-degrees
PR 6733342: Assembly Features are not shown at the upper-level
PR 1907685: Slow performance when working with assembly features.
PR 1940644: Adjustable parts not displaying in assemblies
PR 1951353: obsolete message during 'edit adjustable part'
PR 2207186: Pipe placed incorrectly.
PR 6631946: Unable to create an assembly part pattern using a construction curve pattern as
PR 6922462: Tube centerlines not displayed
PR 6933131: Repeatable Assembly aborts when escaping from Physical Properties.
PR 6934710: Only the top level assembly shows up in occurrence properties.
PR 1955480: Crash after repairing Link (Copy/Paste in Var-Table)

===Draft===

PR 1943399: Solid Edge freezes when placing a block from a list sorted by ascending
PR 1946078: when block is rotated and then scaled, the block returns to original position
PR 1947097: Detached dimensions in draft get multiplied by drawing scale value
PR 1947856: Tolerance inside PMI model view is wrong
PR 6918779: Dimension terminator switches side in angular dims when opening files in ST5
PR 1948952: Shading view in draft does not update if assembly is open
PR 1914809: Dimension Type "Tolerance Unit": Tolerances can't be set
PR 1939921: Improved undo performance associated with interacting with large drawing views
PR 1953852: Crash while placing a Drawing View with angular PMI Dimensions
PR 6938697: Unable to Save As Image to JPG in some machines
PR 2225140: The Chained Angular dimension become wrong
PR 2225512: Angle between command cannot make a chained dimension

===Part/Profile/Sheet Metal===

PR 1933146: Importing Parasolid will destroy umlauts
PR 6793563: Admin tool is closing prematurely
PR 1934967: Etch appears twice in principal view in draft
PR 1947013: Subtracting a construction body causes extra faces, regression against ST4
PR 1947345: Insert part copy and feature from library fails
PR 1948566: ST3 files are defect after update or recomputed, regression against ST3
PR 6920458: Bend lines not showing
PR 1949872: Hole, through next symmetric extent missing in flat pattern
PR 1949891: Offset Faces does not work on Sheet Metal parts
PR 2211451: Offset surfaces to remove internal boundary function does not work
PR 1948612: After re-bending a bend, the part moves from up to down
PR 1946655: Property table information not being saved with the model body in some cases.
PR 1951262: Unable to 'transform to sheet metal' a thicken body created from inter-part copy
PR 2225926: Mirror copy feature (FAST) does not fail where it should

–-
End
–-
