Siemens Solid Edge ST5 MP08 Update

–––––––
Release Notes:
–––––––

Product: Solid Edge

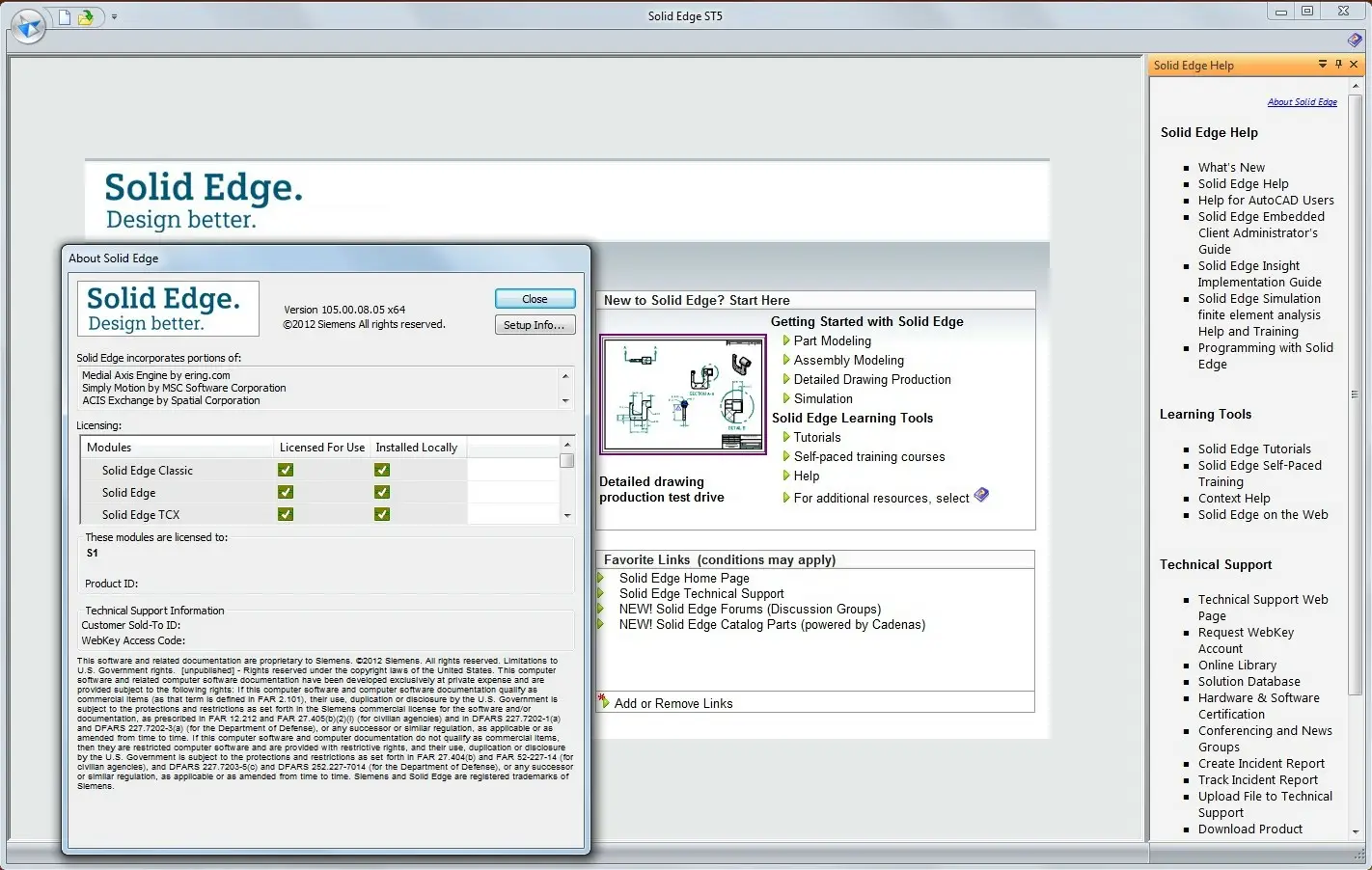

Version: 105.00.08.05
Date: 10-Jul-2013

Note: Maintenance Packs are all inclusive and can be installed on top of the base
release or any released Maintenance Pack.

This Maintenance Pack can be installed on top of Version:
105.00.00.102, 105.00.01.15, 105.00.02.06, 105.00.03.03, 105.00.04.03, 105.00.05.01,
105.00.06.04, or 105.00.07.04.

–––––––––––––––––––––––––
This Maintenance Pack addresses the following PRs:
–––––––––––––––––––––––––

===API===

PR 1918413: Profile is not included completely in new AssemblyDrivenPartFeature
PR 6900780: Accessing AssemblyDoc->StudyOwners in C++ API causes crash on exiting Solid Edge
PR 6908946:DotNetEdge4 Garbage collection CLSID is wrong so GC won't run.

===Assembly===

PR 1930358: Parts will lose features after breaking links of the whole assembly
PR 1941379: reproducible crash after physical motion error
PR 1942276: Abort when switching windows while "Open Documents" selected in Feature Library
PR 2208266: When "Cable" is removed from "Bundle", the cable path disappears
PR 6778046: Path is not created in XpresRoute
PR 6843274: Patterned part flies off into space after editing peer variable
PR 6882770: Parts get counted multiple times depending on selection methods
PR 6883430: Frames do not get included in Physical Props when selected by Frame Component
PR 6891232: Family of Assemblies hang during file open
PR 6894437: Edge crashes after sorting columns in "Advanced Units" dialog
PR 6898277: Abort while saving a document
PR 1914313: the Place Part window is no longer working correctly
PR 1941643: Drawing view from assembly with mirror components doesn't update correctly
PR 2219424: Keypoint curves move when outer diameter of a tube is changed
PR 1940376: Replace Part with a part with the same name does not work
PR 6610747: Pattern Parts command is taking forever to locate pattern
PR 6878999: Frame components do not display in the assembly file
PR 6898152: Undo is causing pattern occurrences to be orphaned
PR 6899608: Using insert relationships will cause Solid Edge to crash
PR 1924741: Use of LinkMgmt.txt causes unexpected binding of link path
PR 6901182: Assembly Features are slower in ST5 than they were in ST3
PR 1945377: Fastener System does not work as expected
PR 2219815: Bolt Connector failing to detect other end of bolts, cannot create connector
PR 6908752: Pattern is not deleted when parent is deleted from the assembly
PR 6914123: Connect Relationship Cone to Cone key-point highlight display is incorrect
PR 6914213: Reproducible abort in configuration manager

===Draft===

PR 1927321: Text boxes shift when exported to AutoCAD .dwg file
PR 1932542: DXF Export causes to move a text in Y-Direction
PR 1939908: line up text of callout fails after edit
PR 1941060: File close/crash after undo/redo of drag of 2D object with segmented styles
PR 6849934: When centerlines are placed on drawing views, dimensions do not show extension line
PR 6894857: Block label occurrence level overrides not being maintained when copied
PR 6899011: 'Distance Between' dimension is not staying where it is placed
PR 6900288: Abort associated with constraining to a view plane line
PR 2218884: Section views with deleted alignment are still aligning to source view
PR 6899421: Title Block text shift when exporting to DWG/DXF
PR 6903463: Mass values are wrongly evaluated for same wire in this workflow
PR 1924349: Text incorrectly rotated on AutoCAD dwg import
PR 6902921: Copy Attributes does note copy the tolerance values for Limits
PR 6906530: Crash when you select 2 Broken Out Section profiles
PR 1943375: Active layer is incorrect in "draw in view"
PR 6909384: Drawing views disappear after using style manger to import styles.

===Part/Profile/Sheet Metal===

PR 6891807: Changing the overall length of a part breaks features in Sync
PR 1940717: Performance opening FOP table not acceptable - nearly 60 seconds for 15 members
PR 2219315: A table does not highlight attached face
PR 6834321: Revolved Feature causes Solid Edge to abort
PR 6897059: Crash after undoing paste of image frame in profile
PR 1923843: Gagetable.xls change confirmation annoying
PR 1927348: Transform to Sheet metal (ordered) prevents selection of Gage Table
PR 2214885: Simulation stresses are half the value of what is expected
PR 1941206: Recompute first feature and the part becomes multi-body
PR 1943153: Cannot create planar base feature or part feature with TAB command on sheetmetal
PR 1945163: Etch in flatten at incorrect position


–-
End
–-
