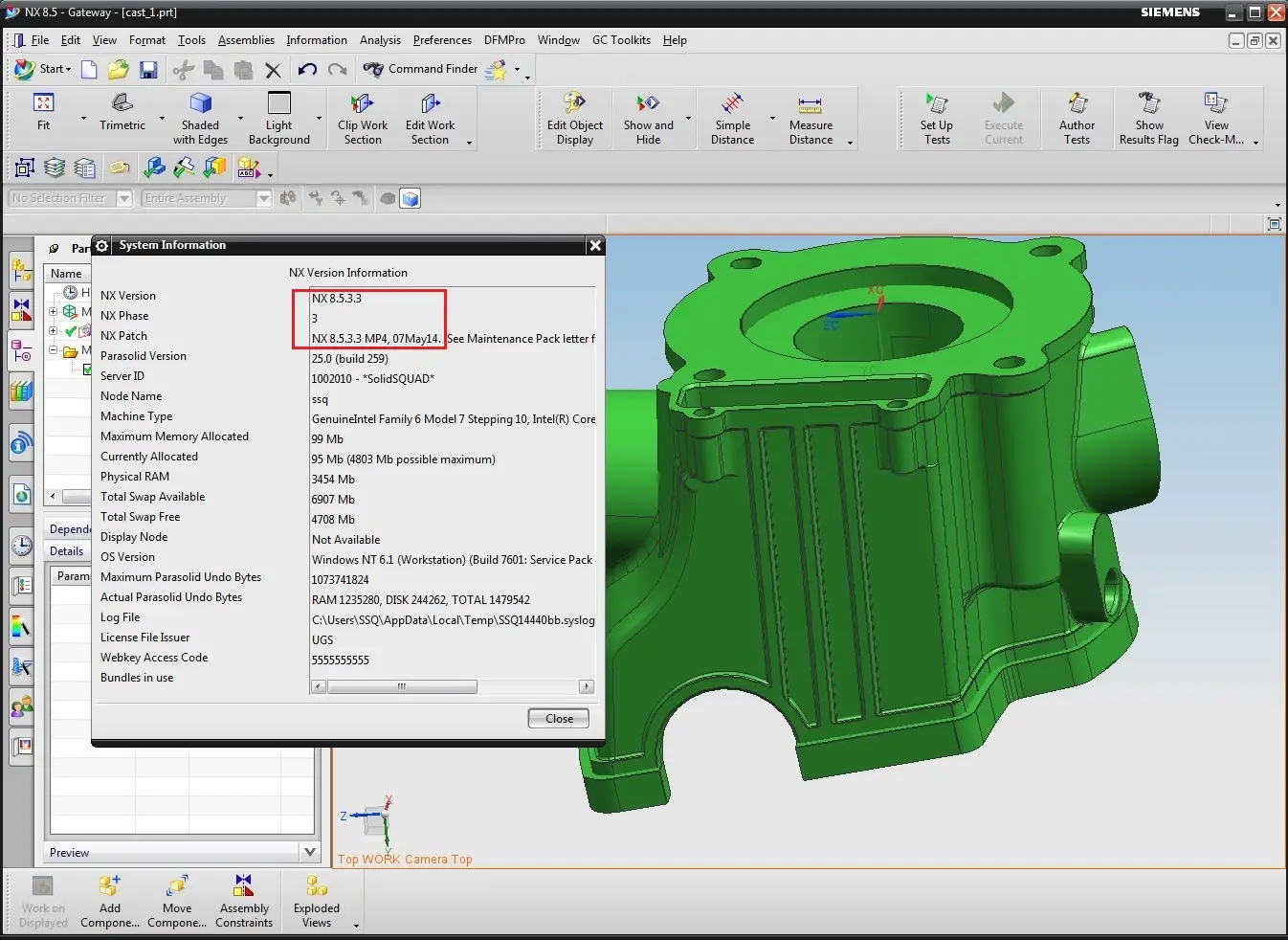

Siemens PLM NX 8.5.3 MP04 Update

1697568 NX sheet metal features does not update after setting Home Page URL
1903632 If UGII_BACKGROUND_URL is set sheet metal feature failed to update
1911989 child feature: owning feature group not highlighting on the pnt.
1928560 Many Alerts when testing migration of parts from NX7.5 to NX8.5
1933385 Exporting DWG of a Drawing containing a Detail View shows expanded Detail View
1938147 Native MultiCAD: unresolved assembly constraint involving CSYS in a transient part
1939614 Measurement does not allow measuring two separate distances
1940267 UFAssem.SetInstanceIntent() fails with 1530004 Family attribute tag is invalid
1947451 Operation Edit Message is missing after generation in NX8.5.2
1951414 Exact View fails to update - There are no curves in the boundary
1953485 Copy/paste a sketch does not create new named expressions
1954003 Inconsistency of highlight the feature group with the parent element
1954379 The API UF_DRAW_ask_face_of_sil doesn’t work when Exact View is Used
1956686 Fix at Current Timestamp is set automatically after a wave link is broken
1958998 Broken References to Wireframe Points in JT
1960638 NX: Local Return by Time and SMM
1960983 NX: Local Return by Time and SMM
1961203 Visible curves at intersecting holes are not displayed
1962919 Constraint between a part and a CSYS in a JT part could not be resolved
1963439 Error when loading assembly with structure only and load the subassembly
1964645 Ordinate dimensions on Exact views are incorrect.
1964764 Model depth in drill operation is not calculated properly
1966365 Patterns containing User Defined Symbols give error
1966664 Collision warning between tool and part during face milling
1966932 Deleting suppressed feature takes very long time
1967944 Embedded custom symbol with multiple text attributes are not displayed correctly
1967970 Attribute Mapping does not work for Item types not available from Display Rules
1968508 NX Attribute Mapping disabled for types that are disabled by Type Display Rules
1969167 Attributes will be overwritten during Save As.
1969248 TC/NX Quantity Type in BOM will not be set correct.
1969958 How to repair view from part drawings saved in NX8.5.2
1970856 turning cleanup with initial profile plunge creates part violation
1971234 GRIP FHREAD truncates GPAs and makes them unreadable for CHOOSE UI
1971260 Erroneous small linear segments generated in circular pockets
1971589 Scope of delayed update customer default gives different results in NX8 onwards
1971858 manual cut pattern user get empty error message
1972268 Internal errors with the same assembly part file if assembly is partial loaded
1972344 Revision name disappear when Routing data option is ON
1972346 Mapped Attributes are not imported into Teamcenter with NX 8.5.3
1972403 Deleting Linked Body takes in NX7.5 1,5 minutes and in NX8.5.3MP1 3,5hours
1972423 Many Alerts in Mirror Feature (UDF) after migration of parts from NX7.5 to NX8.5
1972839 NXOpen::Die::DieCollection::CreateDrawBeadBuilder requires ug_die_design
1973109 TC/NX Quantity Type in BOM will be set to A/R
1973730 TC/NX Quantity Type in BOM will not be set correct.
1973740 GRIP FHREAD truncates GPAs and makes them unreadable for CHOOSE UI
1974283 UDF Regression NX8.0.3.4 MP1-MP8: Linked UDEs are not referenced when instanced
1974329 UDF changes face names when added to model
1974747 Sequential Mill - method group - feeds and speeds inheritance problem
1975080 NX8.5 Electrode BOM rounds Blank attributes from comp array with 2 digits
1975114 DXF/DWG-Export: View Boundary of Detail View will be ignored
1975180 wrong output of MOM-delay-Values
1975204 Import Cam Template - An embedded object cannot be deleted in isolation
1975604 Teamcenter Attributes are lost after Save
1975657 Assembly breaks performance from NX
1977120 Edit Electrode Blank turns off Rename Components setting on next creation
1977245 Machining Knowledge Editor crashes when creating a new rule set
1977900 Expressions lose their references when instantiating an UDF
1978332 Request backport for PR-1940267 to NX8.5.3
1978369 NX8.5 Machining data don’t set the cut depth and stepover is not possible

See Note 4.1 below.

1979318 User Defined Symbol on Pattern is not displayed anymore
1979574 UF_CAMGEOM_append_items doesn’t run with NX 8.5.3 MP3
1979591 New Drawing - Internal error: memory access violation
1979836 DXF/DWG-Export: View Boundary of Detail View will be ignored
1979904 Copy paste features NX8.5 and expressions
1981569 GEOG - UF_CAMGEOM_append_items doesn’t run with NX 8.5.3 MP3
1983593 NX does not paste the moves into the region
1983616 NX does not paste the moves from unused region into the active region
2176652 UG Part attributes sync does not happen for Items hidden using display rules
2215367 CAM: About calculation of the number of times of moving to Return point
2219449 The attribute value saved at a PTS is set only initial value.
2224311 Lines of detail view are not fit in their boundary in the DXF.
2226872 About assignment of the expression by changing the expression.
2231807 Gouged motions found in Cavity Mill and Zlevel profile operations.
2231996 Engage motion does not pass along the Start/Drill Point specified.
2232349 Datum CSYS using Selected CSYS option is created at different location.
2232430 Apply Button does not appear from Measure Distance Dialog Box
2232433 Cannot add objects in KF_BOUNDBOX feature.
2232434 Clearance value in create box dialog is initialized.
2232501 Snap Point settings are reset in Measure Angle command.
2232639 Cannot create Create Box with clearance value zero and preview turned off.
2232649 Chinese Item name display error in the Save As page.
2233526 Dimension has moved when view update.
2233954 Vector seems like specified, but Datum CSYS cannot be created.
2234663 When we select Datum Coordinate System, its child font color is not changed.
2235028 GetCommittedObjects() does not report Pasted Objects
2236135 Copy/Paste the Feature problem
2236136 Stationary face of draft was modified, the shape of the draft becomes different
2236356 After a wave link is broken, Fix at Current Timestamp is set automatically
2236521 Sheet Metal part file cannot be opened after it is saved.
2236679 Imported Reusable Object value is not updated properly.
2236811 Exterior body color becomes the same color as internal cutout in Flat Pattern.
2237285 Wrong tool path is generated to the slot when Intol/Outtol is set 0.01.
6702208 Failed to create preview. Verify Inputs error message occurs randomly
6773162 child feature: owning feature group not highlighting on the pnt.
6811522 Need a method to assign variable value attributes to routing PTS stock.
6815571 Face Mill - face boundaries give blank error dialog
6882568 Problem with feedrate
6889621 sequential mill; feed rate dialog does not contain Cut and Rapid options
6932100 GRIP &CRDATE not returning all characters when &FULLDT=0
6943094 Feature Groups do not highlight plane parents if collapsed
6943141 Sequential Mill Feed rate on Engage move is Rapid
6944653 Engage feedrate not working has to use custom feedrate.
6951520 Z-level gouging part - toolpath is oscillating 90* to the cut direction
6959187 Load to NX from Tc Not Respecting Overridden JT on Occurrence
6972286 Editing Sequential Mill Feedrates changes the values stored in the Method
6977364 Unable to create or update assembly drawing view if use Exact representation
6980602 internal error replacing pattern with user defined symbol
6984107 spreadsheet hangs up in NX drafting on edit
6985171 Patterns containing User Defined Symbols report error, can open 2nd attempt.
6989644 When opening a part file, the Patterns are not loading
6990741 Errors saving assembly with PMI attached to components containing JT Override6991679 Error message received when attempting to copy tabular note
6995286 Detail View causes an Internal Error to be raised loading dwg assembly.
6998629 Component Color and Transparency in NX Not Carrying To Viewer
6999691 open NX7.5 part in NX8.5 fails with an internal error
7100684 An attempt was made to set an constrained attribute to a value outside its limit
7103215 surface contour operation violates the part surface
7103242 Catia v5 translator is not honoring assembly position
7107806 Spark Head is not centering to the Blank
7107811 Changing the parameters reset previous parameters edited
7108954 Unable to open assy drawing file with internal error, Ok in NX7.5
7109758 Same issue as PR#1967716 - requesting back port fix to NX8.5.3 MP
7110362 Assembly Part Family Template dynamic component replacement in NX8.5 spreadsheet
7110912 sequential mill; operation feed rates not output; MB3=Object=Feed Rates are
7111979 Orient WCS to a moved component datum CSYS not result correctly
7116445 Routing PTS part, smart initialization not available when placing on an RCP
7129474 File opens in NX6.0.5 MP12, fails to NX8.5.3 MP3 due to CAM setup.
