OpenFlows SewerCAD CONNECT Edition Update 3.4

The Hydraulics and Hydrology products team is pleased to announce the availability of SewerCAD CONNECT Edition Update 3.4 (10.03.04.53). This release includes enhancements and new features to help you be more successful with your hydraulics and hydrology modeling projects.

SewerCAD CONNECT Edition Update 3.4 (10.03.04.53) - What's new:

MicroStation CONNECT Edition Support
Integration with MicroStation CONNECT Edition is now supported with this release of the OpenFlows storm-sewer products.
AutoCAD 2022 Integration
AutoCAD 2022 integration is supported starting with this version of the OpenFlows water products. Support for AutoCAD 2021, AutoCAD 2020, and AutoCAD 2019 is also included.
Select in Drawing option in Profiles
A Select in Drawing option has been included in the Profiles manager. Selecting this will select the elements of the profile in the drawing. You would then be able to create a selection set, add to an existing selection set, or view the properties of the elements in the profile.

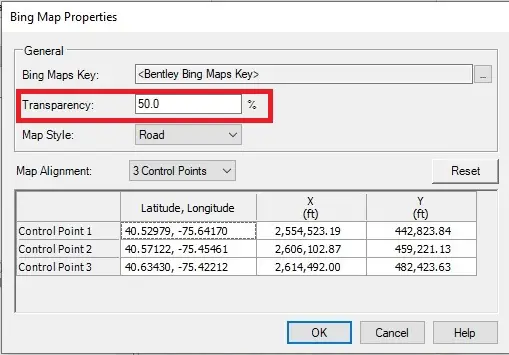

Bing Maps background transparency
You can enter the transparency for the Bing Maps background, using a value from 0% to 100%. If you have an existing model with a Bing Maps background layer you can edit the background layer by right-clicking on the Bing Maps background layer and choosing Edit. When you set the transparency and click OK, the transparency will be updated.


Location persistence for Select toolbar
The Select toolbar, which is used in element selection for features like Active Topology, graphs, and other features, will now reopen in the last location used after it was closed. This can be useful to avoid needing to move the Select toolbar from the middle of the drawing if you have zoomed to a given element you want to select.
Compatible Platforms
- Standalone (no CAD or GIS software required)
- MicroStation CONNECT Edition, MicroStation V8i SELECTseries 10 and earlier
- AutoCAD 2019, 2020, 2021, 2022
- ArcMap 10.8.1 and earlier, ArcGIS Pro 2.6, 2.7, and 2.8 (SewerGEMS only)
Model Compatibility
Models saved in earlier versions of SewerGEMS, StormCAD, SewerCAD and CivilStorm can be opened other versions of 10.03.XX.XX.
Oracle 19c Support
In ModelBuilder, support has been added for connections to Oracle 19c data sources.
Stability enhancements and fixes to reported issues
As with all new versions, this release includes fixes to various user-reported issues from the previous release, providing an overall more stable experience


With OpenFlows WorkSuite, you can confidently plan, design, and operate water systems of any complexity. OpenFlows technologies combine real-time intelligence with spatial analytics, delivering visibility and insights to ensure optimal real-world outcomes.

Apply OpenFlows solutions to a wide array of water-related processes, including water distribution and analysis, sanitary and combined sewer management, and flood risk assessment and mitigation.

SewerCAD is an easy-to-use sanitary sewer modeling and design software product that thousands of municipalities, utilities, and engineering firms around the world trust to design, analyze, and plan wastewater collection systems. Engineers can model both pressurized force mains and gravity hydraulics with ease, using steady-state analysis with various standard peaking factors,and extended-period simulations.

Introduction to SewerCAD Part 1 of 2


Introduction to SewerCAD Part 2 of 2


Bentley Systems, Incorporated is the global leader dedicated to providing architects, engineers, constructors, and owner-operators with comprehensive architecture and engineering software solutions for sustaining infrastructure. Founded in 1984, Bentley has nearly 3,000 colleagues in more than 45 countries, $500 million in annual revenues, and, since 2001, has invested more than $1 billion in research, development, and acquisitions.

Product: OpenFlows SewerCAD
Version: CONNECT Edition Update 3.4 (10.03.04.53)
Supported Architectures: x64
Website Home Page : www.bentley.com
Languages Supported: english
System Requirements: PC *
Size: 1.4 Gb
