Nexao LTE H-Monitor 4.63
Nexao LTE H-Monitor 4.63 | 3 Mb

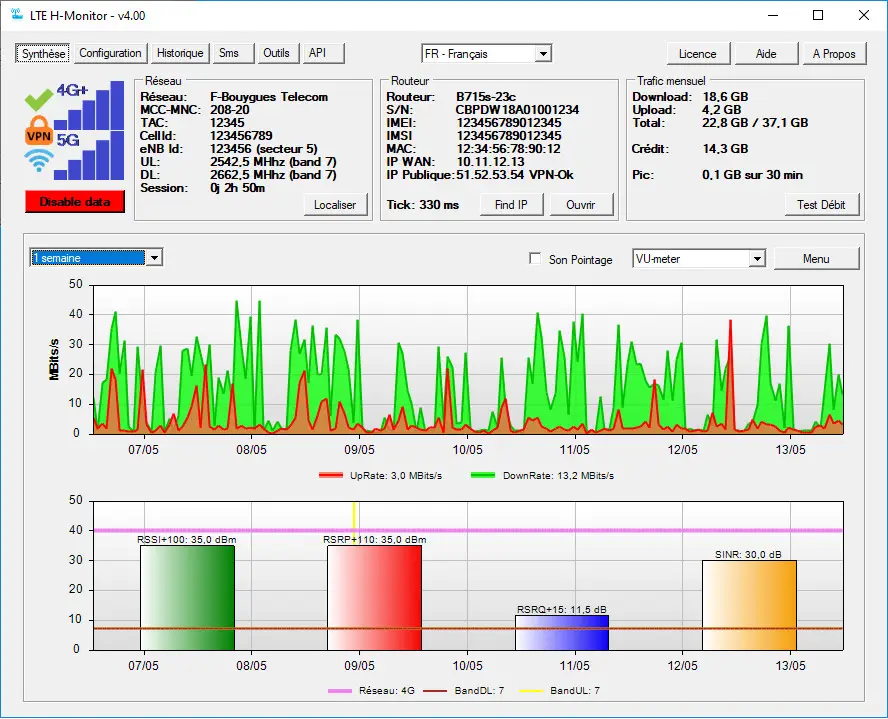

LTE H-Monitor is a software that allows you to monitor your Huawei 4G or 5G router. You can display indicators (speeds, signal strength, etc.) over different periods (up to 1 year), and you can also manage the router configuration (radio parameters, SMS forwarding, data activation schedules , …).
Main features
Graphic functions :
Graphs over 5 minutes, 1 hour, 1 day, 1 week, 1 month or 1 year
Multiple indicators : data rates, volumes, signals, customized indicators, …
Fully configurable graphics (number of windows, curves, colors, formulas, …)
Display profiles to save several different graphic configurations
Integrated web server to display graphics in a web browser
Stay-on-top floatting window to display summary information
Monitoring functions :
Display of reception level, UL and DL bands, data quota, …
Scheduled restart of the router at different times
Activation / Deactivation of data or wifi according to schedules
Ping and DNS performance monitoring
SMS triggers : the reception of a particular SMS activates a function (Data, Wifi, Vpn, Radio override, Restart or personalized commands)
Display and setting of radio bands
Possibility of forcing the radio parameters in case of change or according to schedules
Selection of internal / external antennas
SMS forwarding to another number or by email
Kill switch to immediately stop data
Direct access to the router's configuration page
Direct access to maps with BTS positions (Anfr, Cartoradio, Cell2gps, …)
Direct access to the nPerf speed test
Public IP address localization
Emailing of data reports
Possibility of retrieving indicators from other equipments (XML or JSON web services)
Environment :
Requires a compatible router (B525, B715, B818, …)
Works on Windows 10, Linux (Raspberry Pi, NAS Synology, with Mono), or directly on the router (embedded version)
Graphics can be displayed in a browser on Android, iOS, Tizen, … (integrated web server)
Portable executable : no installation required, just place the files in the directory of your choice
Command line mode to record indicators in console mode without graphical interface
Several languages available (FR, EN, …)
The free version is limited: it does not save data when the program is closed.
Home Page - https://www.ltehmonitor.com/en/
