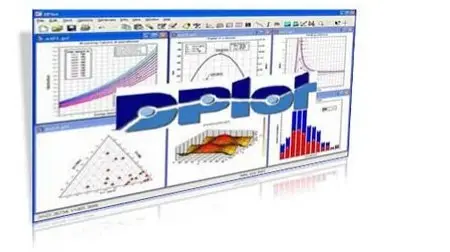

HydeSoft Computing DPlot v2.3.0.9

DPlot is a general purpose plotting program designed for scientists, engineers, and students. DPlot features multiple scaling types, including linear, logarithmic, and probability scales, as well as several special purpose plots: tripartite grids (shock spectra), grain size distribution plots, polar plots, contour plots of 3D data, and box-and-whisker plots and dot graphs of one or more 1D samples. Manipulation functions include FFT, filtering, and smoothing. DPlot is a software that helps you to plot graphs. Data can be input via a variety of file formats, copied from the clipboard, sent to DPlot from another program via dynamic data exchange, or generated by formula. Example Visual Basic and C demo driver programs (source and compiled executable) are included.


Key Features:
· Multiple scaling types, including linear, logarithmic, and probability scales on the X and/or Y axes. DPlot also provides several special purpose scale types, including grain size distribution plots, tripartite grids (shock spectra), polar charts, and triangle plots.
· Bar charts with bars drawn side-by-side or stacked.
· Box-and-whisker plots and dot graphs for one or more groups of 1D data.
· Multiple independent or dependent scales.
· Error bars with magnitudes set to a constant value, to a percentage of the amplitudes, or independently.
· Fill between 2 curves, fill the area formed by closing a curve, or fill from a curve to a specified Y value. Choose from seven pre-defined fill patterns or create a custom pattern.
· Contour plots of 3D data, shown as contour lines in a plan view of the XY plane or as shaded bands in a 3D projection. DPlot accepts both randomly-spaced 3D points and points on a rectangular grid. For rectangular grids only, DPlot can also produce a waterfall plot.
· 3D scatter plots, with up to 100 data sets and colors based on Z value or data set.
· Choose from 38 symbol styles and/or 7 line styles for your XY plots. You have full control over symbol size, line weight, and color.

· Choose from a variety of number formats for each axis. Date and time formats are customizable.
· Copy and/or link data from other sources (e.g. spreadsheets), or use our Excel Add-In to easily move data from Excel to DPlot.
· Copy and/or link DPlot-produced graphics to other applications.
· Add text notations to plots.
· Generate curves from formulas.
· Data manipulation functions include integration, differentiation, Fast Fourier Transform, filtering, data smoothing, and many other simpler editing functions.
· If you have several data records from the same high-speed event and want to play back those records in sync with each other… well, you can. Have a video associated with your data? Play the video back along with your data, synchronized at the data rate you specify.
· Interpolate between points, scan values of curves graphically, and report peak values.
· Include subscripts, superscripts, and characters from the Symbol font (Greek characters, trademark symbols, etc.) in the title lines and axis labels of your plots, as shown here.
· Plot very large data sets. The number of data points is limited only by the memory (both physical and virtual) on your system.
· Send data to and control DPlot from another program through the DPLOTLIB interface (available free-of-charge as a separate download. Example programs with source for Visual Basic, VB.NET, PowerBasic, 4 different C compilers and 5 different FORTRAN compilers are provided.
· You may create additional functionality with your own plugin modules for file import and data manipulation. Example C plugin source code is provided with the Plugin Examples.

Home Page - http://www.dplot.com
