Autodesk Civil 3D 2023.3 with Updated Extensions

Autodesk has released Civil 3D 2023.3. This release includes new and updated features, performance enhancements, and fixes for Autodesk Civil 3D 2023.

Release Notes for Autodesk Civil 3D 2023.3
New commands like Check for Duplicate Service Connection Points and Match Line.

New! Check for Duplicate Service Connection Points
Checks the entire drawing for service connection points with duplicate connections.
New! NVMinMaxSurfaceNoDia and NVPasteSurface
These are scriptable commands that can be used script combined trenches.
New! Match Line
Can create match lines between View Frames with labels showing the view frame names and optional individual hatches.
New! Add selection to schedules
Can be run to add more objects to an existing schedule table.
Line Styles
Updated with options Auto-Add Hatches and Auto-Add Property Set to automatically add hatches or property sets when a line is created.
Service Pipe
Updated to warn for duplicate connections when either Dynamic Update or the Update command is used. Connect to Connection Point has been updated to ask whether to keep duplicate connections of replace the existing connection. If the service pipe is connected to a structure and a pipe, and the service pipe is set to Hold Slope then the connected pipe is updated with maintained drop.
Set Slope
Updated to have the option to use Cover. When Cover and Slope are used in combination, then the pipes are set to the correct slope first, then min cover is checked and if min cover is violated then the slope is increased. Set Slope is also updated with the options to Update Service Pipes directly.
Markings Report
Added new columns for the markings report for Add Gap, Total Length and Painted Length.

Fixes
- Fixed an issue where the drop-down in Naviate License Log-in is visible too short time to be selected. Note that the issue is solved by not showing Coordinates on the Status bar. If Coordinates are shown, the drop down doesn’t work. A new variable, NVCoordinates, can turn off coordinates at close down.
- Fixed an issue where on some computer Naviate logged out of the license service when the computer goes into sleep.
- Fixed an issue where Object Explorer slowed down the drawing when a service pipe is created.
- Fixed an issue where changing the sign size on a rotated SignHolder gives the wrong new elevation for the sign.
- Fixed an issue where Line Markings didn’t work on Auto-corridor Featurelines
- Fixed an issue where Cross Markings didn’t use the color settings for the 3D view
- Fixed an issue where markings report showed the label formula instead of the label result

Note: AutoCAD 2023 Update 1 or later updates must be installed before Civil 3D 2023 Update 2. AutoCAD 2023 Update 1 cannot be uninstalled independently. To remove the update, you must reinstall Civil 2023.0.

Civil 3D software from Autodesk addresses the needs of civil engineering companies involved in standalone and BIM (building information modelling) Civil engineering projects. Built on a familiar AutoCAD platform Civil 3D has been specifically geared to address the challenging needs of civil engineers around the world involved in complex and demanding civil engineering projects such as land development, transportation and even water based engineering projects.
The release of Civil 3D 2023 is packed with user-requested updates and enhancements to help streamline tasks, maintain consistent data, and respond to changes quickly—allowing you to focus more on design and innovation.

What's New in Autodesk Civil 3D 2023


Watch this on-demand webcast to see the new features now available in Civil 3D 2023.
Autodesk helps people imagine, design and create a better world. Everyone—from design professionals, engineers and architects to digital artists, students and hobbyists—uses Autodesk software to unlock their creativity and solve important challenges.

Owner: Autodesk
Product Name: Civil 3D
Version: 2023.3 with Updated Extensions *
Supported Architectures: x64
Website Home Page : www.autodesk.com
Languages Supported: english

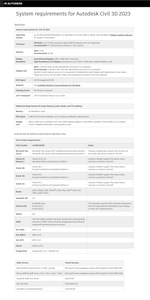

System Requirements: Windows **
Software Prerequisites: Autodesk Civil 3D 2023 and above
Size: 2.3 Gb
