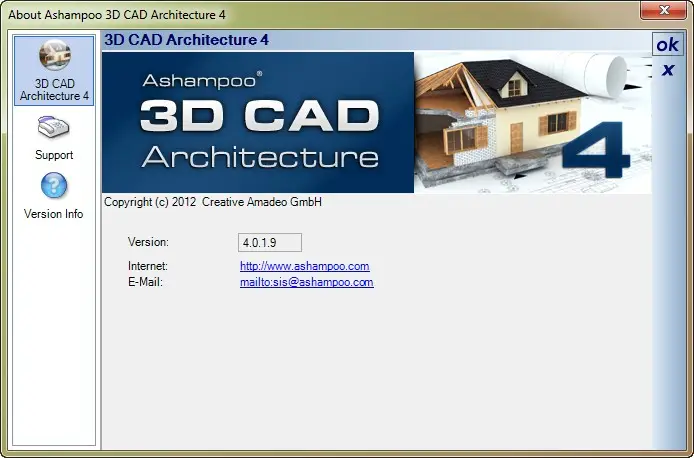

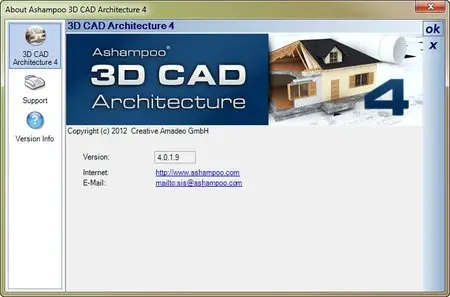

Ashampoo 3D CAD Architecture 4.0.1.9

Ashampoo 3D CAD Architecture will help you design shopping malls, family homes, high-rise buildings, or simply a basic apartment; and all this are performed within an interactive and a realistic 3D world. All views and windows are updated synchronously, regardless of whether you are planning in the 3D-window, a 2D plan or a cross section view. Easy to use but nevertheless with very accurate results.

Features
Design views: 2D, 3D, Cross-section
3D constructions: 7 primitives (cube, cone, cylinder, sphere, torus, wedge, pyramid), extrusion/rotation/sweep/subtraction solids
Building components: Walls, ceilings, windows, doors, openings, slots, skylights, solar elements, chimneys, beams
Measurements: Metric and imperial with precise dimensions
Input aids: Customizable reference points, construction aids (center point, intersection point, point with distance from, perpendicular, parallel point, point in line, enter coordinates), angle grid
Exterior lighting simulation
Freely positionable camera and viewing angles

New Features in Ashampoo CAD Architecture 4
Project Wizard
NEW Step 1: Enter project data such as building contractor, planner and project location.
Step 2: Select measuring units, scale and floor plan shape.
Step 3: Specify dimensions.
NEW Step 4: Edit number of floors with adjustable heights.
NEW Step 5: Select the roof from pre-defined shapes or customize each roof side individually.

Other
Catalog: New 2D symbols to add more detail to 2D views, e.g. vehicles
Support for 2D angle dimensioning
Angle measurements
Measurements through polygons
Photovoltaic panels: New grid input and additional 3D modules
Shadow simulation: Specify geographic location and start/end times to track shadow distributions across fixed timespans, e.g. to facilitate planning of photovoltaic systems
Automatic area and length calculation for roofs, eaves, gorges, ridges and verges
Support for area and volume calculation



OS : Windows® XP with SP3, Windows Vista®, Windows® 7 (32bit/64bit), Windows® 8 (32bit/64bit)
Language : English/German

Home Page - https://www.ashampoo.com
