Datahammer 7yuv 2.5

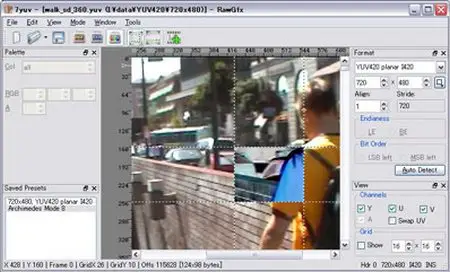

7yuv is is a tool for editing and visualizing raw graphics data and binary files. It is a valuable tool to assist development of games, video codecs, and general graphics programming. A large number of surface formats is supported, including RGB and YUV pixel formats.

7yuv opens any file, regardless of type or size. Data is handled as raw binary, 7yuv allows "bit-true editing", i.e. no hidden data conversions are performed. Data can be edited in graphics, hex, or text mode.

Selection of Features:

64-bit large file support
Graphics editing mode with selectable pixel formats: RGB, Bayer, YUV, YUV-planar, palette, bit-planar
Format conversion between RGB and YUV formats
Hex editing mode (Byte, 16/24/32/64-bit Words, little and big endian)
RawText editing mode (SBC, DBC, UTF-32 encoding, little and big endian)
Super fast seek and editing independent of filesize
Custom rendering engine for bitmap fonts and graphics
Palette editing
Save individual video frames to image (BMP, JPEG, PNG, etc.)
Generate test frames
Tabbed file editing, built-in file explorer

Selection of Graphics Formats:

YUV 420, YUV 422 planar, NV12, NV21, IC0, IC1, IC2, IC3
16-bit YUV 420 planar, P010/P016 semi-planar
YUV 4:4:4, AYUV, YUV422 (interleaved YUYV, YVYU, UYVY, VYUY, V210)
RGB155, RGB565, RGB888, ARGB8888
Bayer RGGB/GRBG/GBRG/BGGR 10-bit/12-bit/14-bit/16-bit component packing
1 bpp, 2 bpp, 4 bpp, 8 bpp chunky formats with palette
2/3/4/5/6/7/8 bpp bit-planar formats

OS : Windows 8/7/Vista/XP
Language : English

Home Page - http://datahammer.de/
